Hello,
I have troubles in the reassembly of my revolver.
This part wants to go up, pushed by the spring :
What is the name of this little part, which rotates the cylinder while pulling down the hammer ?

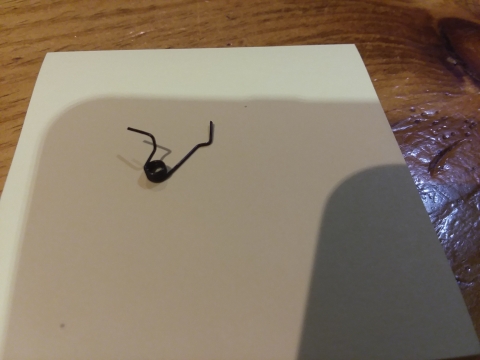

What is the name of this spring and are yours in the same shape ?
Thanks for your help.
DWF Supporters
Dans Club
Moderators
November 17, 2008
Offline
That is the "hand spring" looks OK to me but I am no expert. Try reading this thread link it has a lot of great info.
LB
Wisdom is merely the realization of how little one knows, therefore I am wise.
Supporter
Dans Club
March 25, 2013
Offline
The hand spring looks normal to me. It engages the hand with one end and pushes the cylinder while the other end is wrapped around the transfer bar that travels upwards. The hammer hits the transfer bar which hits the firing pin. It retracts after the hammer fall and prevents contact of the hammer and firing pin until the trigger is pulled again.
April 22, 2019
Offline
What a gold mine !
I know how to pass my next off-hours (days ?).
Wolff spring kit seems great, but do they ship oversea ?
I'm going to ask them.
Thanks a lot.
Mat
Supporter
DWF Supporters
May 11, 2011
Offline
Shows what I know, I thought that hand spring looks bent. Here's one from EWK arms, Their left on the longer side
DWF Supporters
April 14, 2018
Offline
The spring looks just fine to me. Yes the hand wants to push up a bit but it is held in place by the side plate when you put it back together. A little gun oil on the hand is recommended because the hand can rub ever so slightly on the side plate.
