I am new to this forum. I had been looking for a revolver for a while, thinking about Colt, Smith, Ruger. Then I kept reading blogs about DW being very good. The rest is history. I purchased an older 15-2, from the serial number sheet here I figure it was probably made in 77. I took it out to the range yesterday for the first time. I am used to an auto so this will take some time to get used to.
I have a question regarding the side plate. There is a half circle shape piece missing from my side plate. Is this something that normally falls out? can a replacement be bought?
Dans Club
DWF Supporters
April 20, 2010
Offline
Welcome to the forum, you made the right choice for a revolver. I think the piece you are missing from the sideplate is probably the cylinder stop. I have seen other guys who had them fall out. I believe you can get one from the Dan Wesson factory, unfortunately they had a fire last fall and are closed. Info I have says they will reopen for parts in the spring. Until then maybe someone here will have one, or check Gunbroker or Ebay, old parts often show up there. Somewhere around here there is a thread of a member who actually made his own replacement.
-Lonwolf
"The lion and the tiger may be more powerful, but the Wolf does not perform in the circus"
Dans Club
March 2, 2008
Offline
That is the cylinder stop, it "stops" the cylinder from sliding back too far when ejecting brass. It is not actually a separate part, on DW's of your vintage (I know, I have one too) that part of the sideplate was poorly engineered and that piece breaks cleanly from the sideplate and gets lost. Later years have more substantial reinforcement of this.
Good News/Bad News- Dan Wesson in Norwich, NY (the Factory) has a service part to replace that little "nub", unfortunately they had a fire a short while ago and are not in a position to supply one to you just now. Check the "Where can I order parts" FAQ on the right sidebar for info on contacting them.
And, WELCOME!
I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.
George Carlin
Supporter
Moderators
January 24, 2009
Offline
aboard, do you have any
to share?
February 3, 2013
Offline
yes I do, but the "add files" link isn't working.
February 3, 2013
Offline

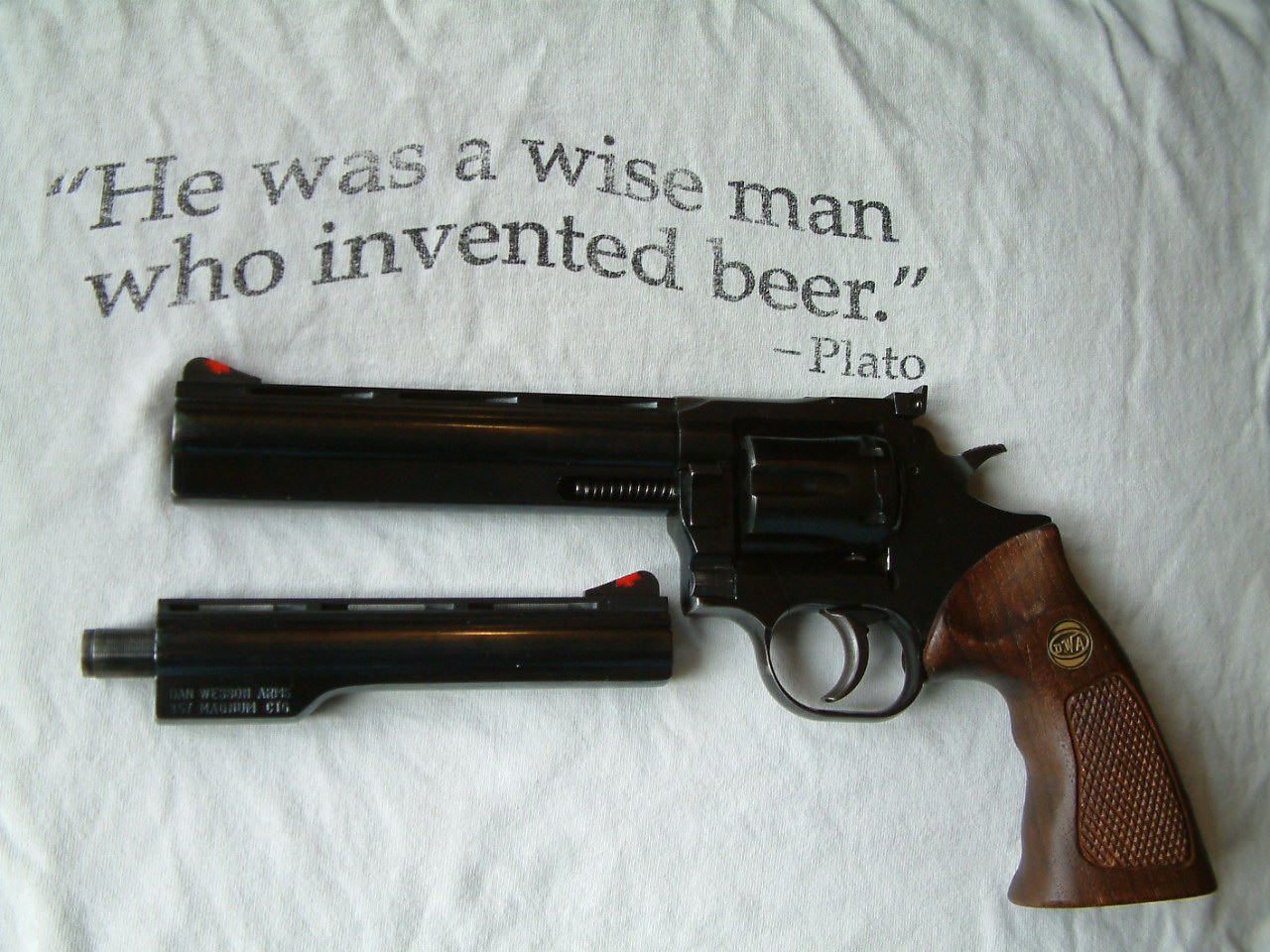

OK, Mac works PC doesn't. Here is the new obsession.
Supporter
Moderators
Dans Club
February 22, 2009
Offline
Very niceTechnically, the glass is always full; half liquid, half air....
November 23, 2012
Offline
February 3, 2013
Offline
I saw that today but it is missing the same nub. I guess other than the gun not being complete, that is an area that dirt/dust can get into the action.
Dans Club
March 2, 2008
Offline
GWS said
I saw that today but it is missing the same nub. I guess other than the gun not being complete, that is an area that dirt/dust can get into the action.
Good catch. On earlier guns this part of the sideplate had a very sharply defined profile as part of the sideplate. On later production this "nub" was smoothed into and better supported as part of the sideplate. DW Norwich will eventually be back up to speed, and this is a standard service part for them.
I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.
George Carlin
Supporter
Range Officer
Moderators
DWF Supporters
Dans Club
December 4, 2011
Offline
I was wondering if you could make that stop out of a small Woodruff key? It could be blued with some bottle bluing and should match fairly well. I would also be curious if it could be epoxied into place to prevent future drop outs?
Anything worth doing is worth doing well.
My father
If a man designed it, and a man built it, then a man can fix it.
My grandfather
Dans Club
March 2, 2008
Offline
The replacement piece from DW/CZ has variously been put in place (carefully) with epoxy and Lock Tite.
I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.
George Carlin
