Hello from Scottsdale, Az.
Avatar
StuO
Member
Members
Forum Posts: 5
Member Since:
November 25, 2017
sp_UserOfflineSmall Offline
1
June 28, 2022 - 2:22 pm
sp_Permalink sp_Print

I'm glad to have found this forum, and I've gotten some good info from it as well as from various parts sellers and Youtube armorer videos.

Around 30 years ago, I stopped in a gun store, looking to get rid of my Berreta Boat Anchor (Bobcat .22lr). I ended up trading straight across for a DW 22V with 8" barrel. After a short time at the range, I discovered I couldn't eject the empties without excessive force. So I stuffed it in the safe, and that's where it sat till recently. It also had some blueing and scratching issues as well as a latch spring screw that was broken off...INSIDE the latch. I decided to either repair it or sell it for parts.

So I stripped it down 100% and found the parts I need on-line. Buffed the shroud like a mirror and re-blued, repaired the latch, and cleaned it all spotless, but I had to fix the stuck cases issue. The insides of the chambers are really fouled up and scored, as if some budding backyard hack had tried to ream them. Fresh ammo slides right in, but it is really hard to extract after firing. My possible solution will be to polish the chambers with a special order Flex Hone in 400 grit. I see I'm not alone here with this problem, and I'll post the results in the current thread I see in the forum.

Stu O

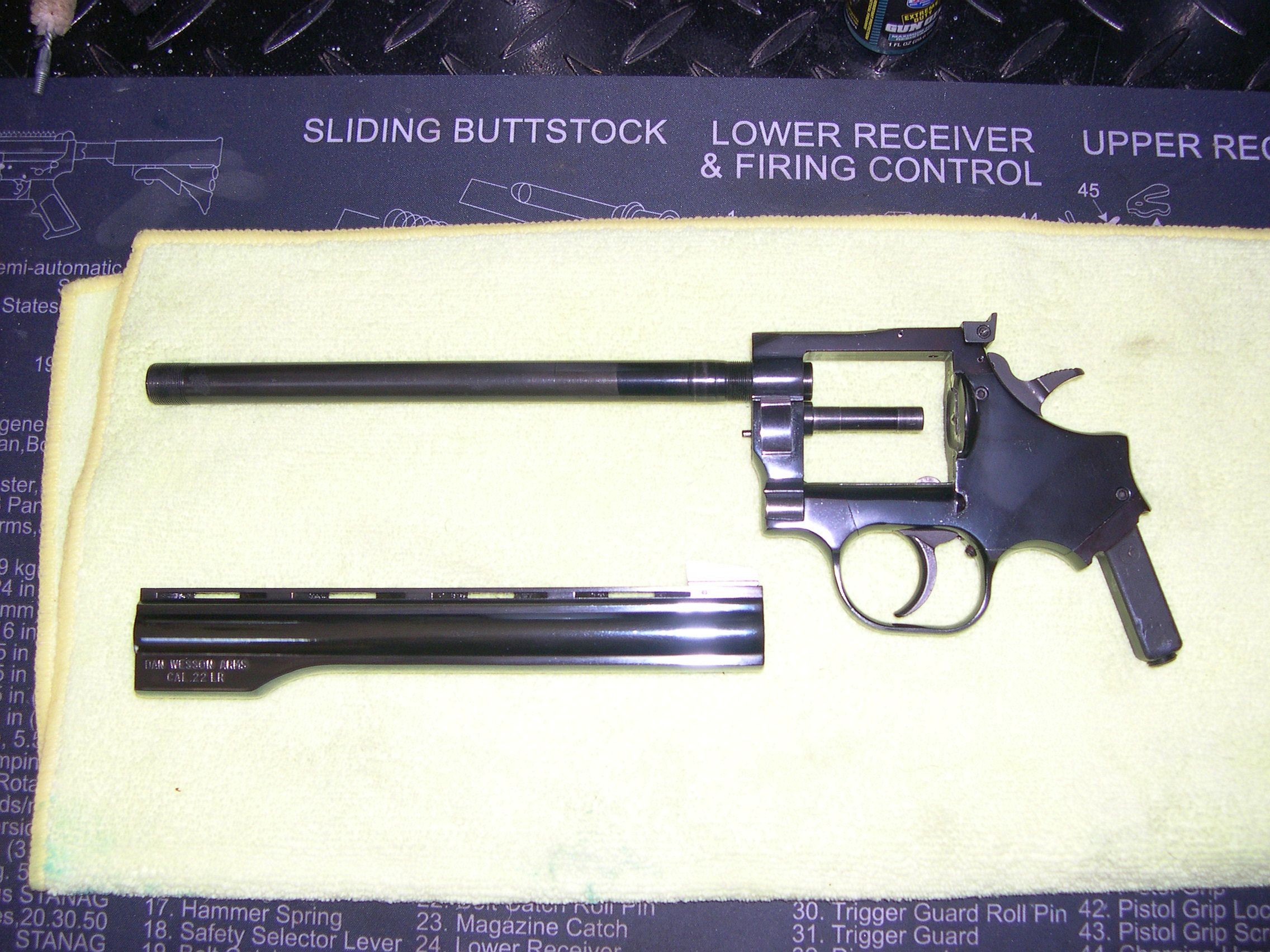

Frame-and-shroud.jpgImage Enlarger

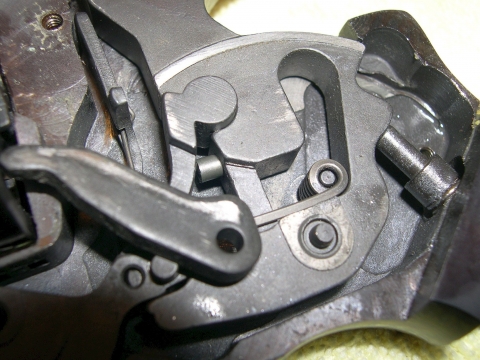

under-sideplate.JPGImage Enlarger

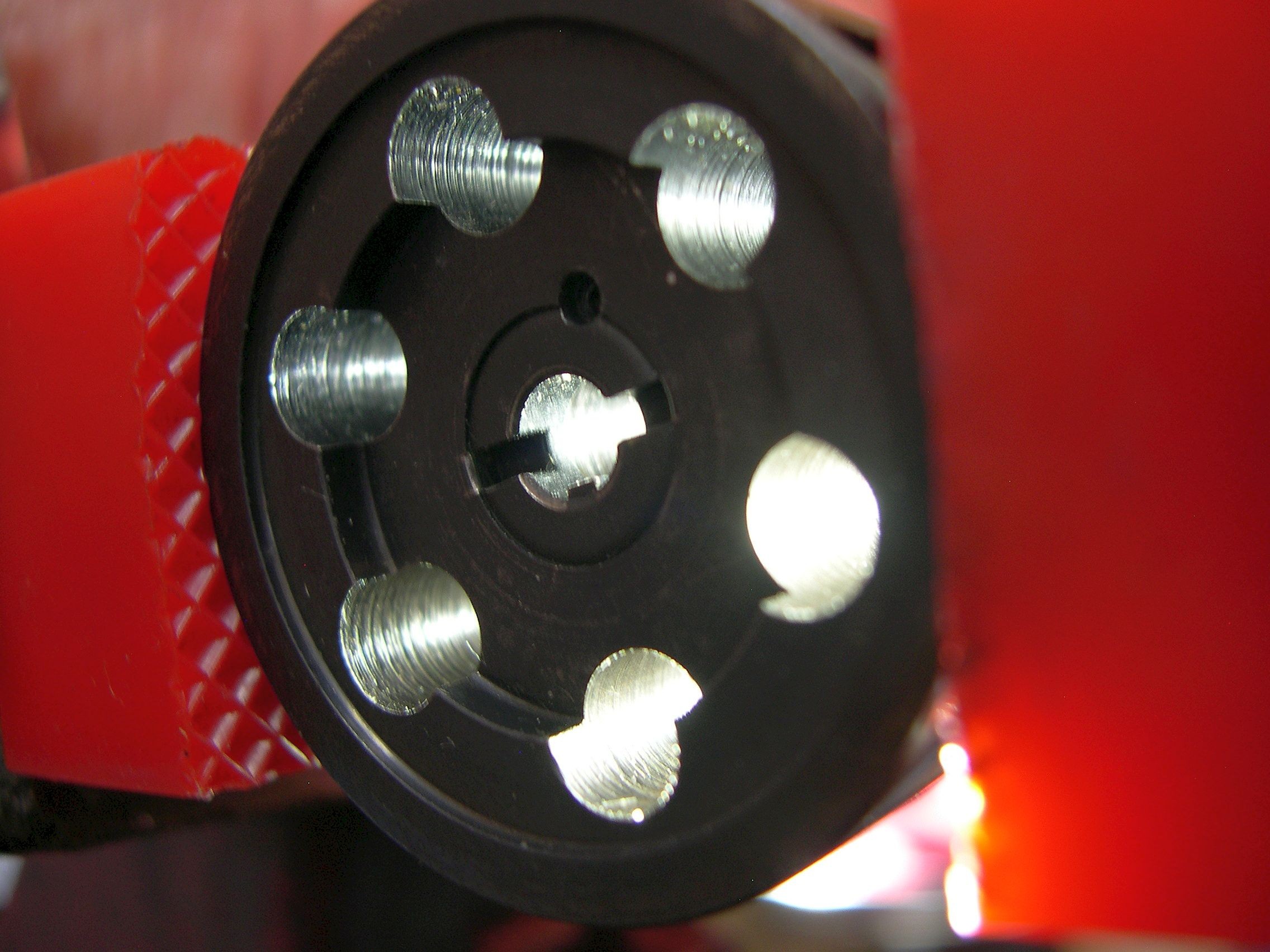

Messed-up-chambers.jpgImage Enlarger

Avatar
605Dart
SW PA
Member

DWF Supporters
Forum Posts: 1074
Member Since:
July 12, 2020
sp_UserOfflineSmall Offline
2
June 28, 2022 - 3:19 pm
sp_Permalink sp_Print

Welcome to the forum from PA! It seems polishing the chambers is key to solving this problem.

Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1410
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
3
June 28, 2022 - 3:30 pm
sp_Permalink sp_Print


Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 4085
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter
Members


Moderators


Dans Club
Forum Posts: 5350
Member Since:
February 22, 2009
sp_UserOfflineSmall Offline
5
June 28, 2022 - 8:32 pm
sp_Permalink sp_Print

You can chuck a split wooden dowel in a drill, slide in a piece of emery paper, lightly oil the chambers and polish on the cheap...

Technically, the glass is always full; half liquid, half air....

Avatar
Stinger
Member
Members
Forum Posts: 3460
Member Since:
February 16, 2016
sp_UserOfflineSmall Offline
Avatar
snake-eye
Fort Myers, Florida
Member
Members


Dans Club
Forum Posts: 1967
Member Since:
December 5, 2008
sp_UserOfflineSmall Offline
Avatar
StuO
Member
Members
Forum Posts: 5
Member Since:
November 25, 2017
sp_UserOfflineSmall Offline
8
July 1, 2022 - 1:35 pm
sp_Permalink sp_Print

KurtB said
Welcome aboard, look forward to your results!



Okay Kurt. Here are my results...so far. I purchased a .22LR chamber flex hone from Brush Research. 400 grit silicon carbide. Using it by instructions, it was pretty well worn out after the 6th chamber, but it did get the chambers smooth at both ends - the center third still had grooves, but their edges were chamfered and blended somewhat. I decided to leave it there and try it.

I had Winchester SuperX 36 grain and Federal Match 40 grain, and I fired 10 cylinders full of each, alternating ammo after each 5 cylinders. So, 120 total rounds fired. The SuperX empties ejected smoothly with moderate pressure on the ejection rod. The Federal empties dropped out with only a light touch on the rod. Ejection force stayed pretty much unchanged for each brand for the entire test. I'll test several other brands and styles, but I'm really happy with the Federal ammo in it right now.

Stu
