sp_Feed sp_TopicIcon
Custom 300 PRC Build
Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1627
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
1
March 2, 2025 - 9:58 pm
sp_Permalink sp_Print sp_EditHistory

IMG_6509.jpegImage Enlarger

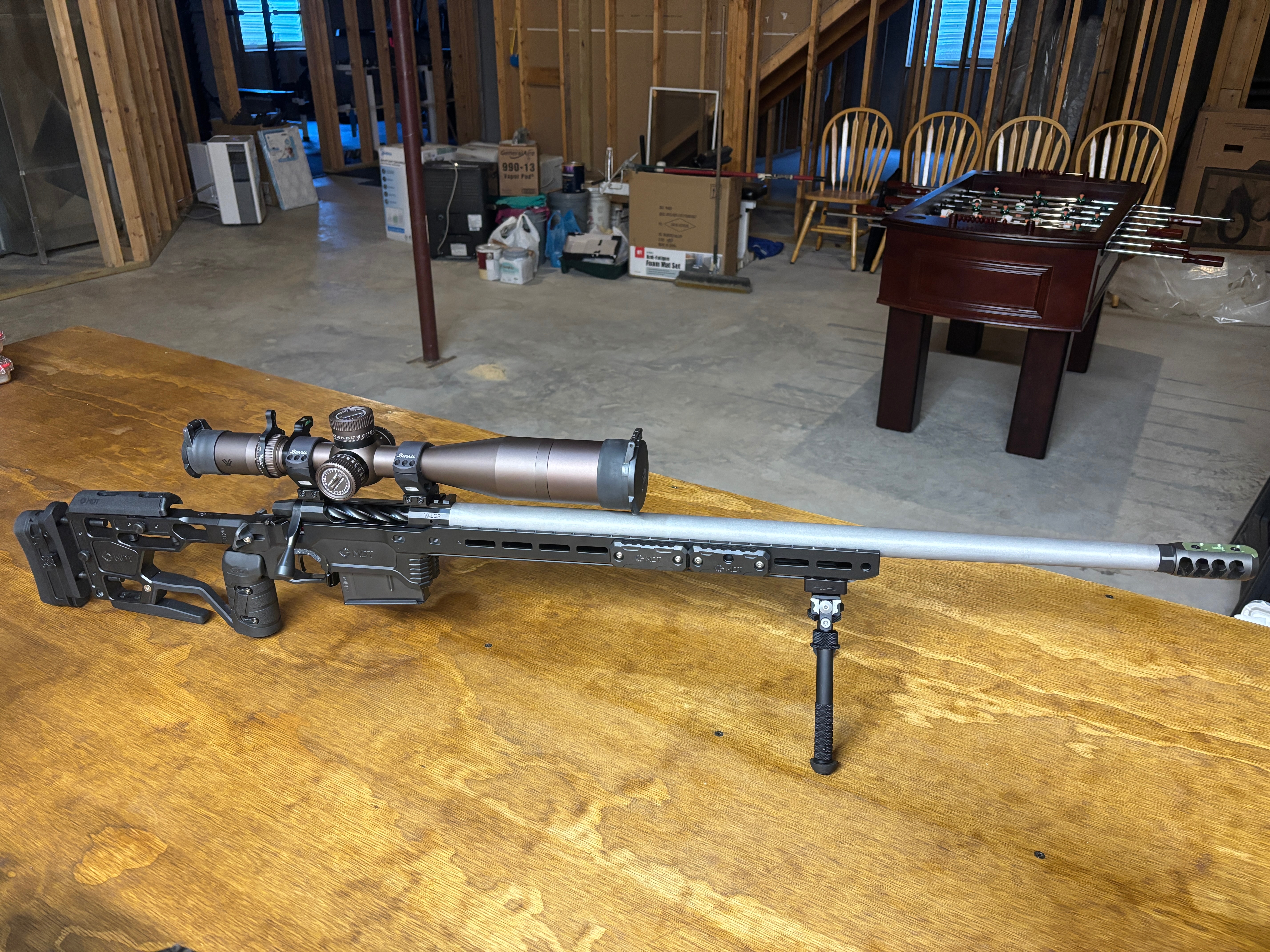

Just picked up my action and barrel from the gunsmith.  He did the chamber reaming for 300 PRC caliber.  When I got home I assembled the Curtis Custom action, TriggerTech Diamond single stage, Bartlein barrel, MDT brake, MDT Elite ACC chassis, Vortex Razor HD Gen III 6-36x56mm EBR-7D MOA FFP scope mounted with Burris XTR Signature 34mm 1.50” rings & Area419/B&T V8 Atlas bipod.

Looking forward to finding the load recipe it likes best.  Hopefully I can get .250” groups at 100 yds.

And then it’s time ring steel at 1-mile!


Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter
Members


Moderators


Dans Club
Forum Posts: 5405
Member Since:
February 22, 2009
sp_UserOfflineSmall Offline
2
March 3, 2025 - 5:21 am
sp_Permalink sp_Print sp_EditHistory

Seems to be a pretty solid set-up.  Hope she shoots well for you.  I've used the MDT Chassis on Ruger, Savage, and Remington builds- I really like them.

Technically, the glass is always full; half liquid, half air....

Avatar
Stinger
Member
Members
Forum Posts: 3554
Member Since:
February 16, 2016
sp_UserOfflineSmall Offline
3
March 3, 2025 - 2:52 pm
sp_Permalink sp_Print
Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1627
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
4
March 3, 2025 - 7:36 pm
sp_Permalink sp_Print

rwsem said
Seems to be a pretty solid set-up.  Hope she shoots well for you.  I've used the MDT Chassis on Ruger, Savage, and Remington builds- I really like them.

Hope so too!  My 1st MDT chassis.  I have the Woox Furiosa chassis on my 6.5CM and it’s been great.


Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1627
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
5
March 3, 2025 - 7:36 pm
sp_Permalink sp_Print

Stinger said
Looking forward to your range report.



Will do!


Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1627
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
6
March 3, 2025 - 7:45 pm
sp_Permalink sp_Print sp_EditHistory



Well, unfortunately my Dillon RL550 press will not throw consistent powder charges.  When testing, it would charge from 1.2gr under to 1.3gr over totaling a 2.5gr fluctuation.  Not good for long range precision.  I thought a spherical powder like Winchester StaBALL HD would meter better than it does.

Looks like plan B is in order, a Lyman Gen 6 digital powder dispenser.


Avatar
SCORPIO
PA

Supporter

Range Officer
Members


Moderators


DWF Supporters


Dans Club
Forum Posts: 4207
Member Since:
December 4, 2011
sp_UserOfflineSmall Offline
7
March 3, 2025 - 8:01 pm
sp_Permalink sp_Print

Powder drops don't meter stick powders very well.

All my Dillons work well with flake powders like Blue DOT but they do best with fine grain ball powders like H 110 and 1680.

Anything worth doing is worth doing well.

My father

If a man designed it, and a man built it, then a man can fix it.

My grandfather

Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1627
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
8
March 3, 2025 - 8:03 pm
sp_Permalink sp_Print

It drops Titegroup really consistently. I haven’t tried any of those powders you listed yet.


Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter
Members


Moderators


Dans Club
Forum Posts: 5405
Member Since:
February 22, 2009
sp_UserOfflineSmall Offline
9
March 4, 2025 - 5:20 am
sp_Permalink sp_Print

I use an RCBS Chargemaster but when being very precise I set it to throw 1-2 grains below the target and trickle up by hand to the charge I want.  I've had SDs for 20 rounds consistently run less than 10fps using that technique. Of course, this is all for a single stage reloader (Forster Co-Ax).

Technically, the glass is always full; half liquid, half air....

Avatar
SCORPIO
PA

Supporter

Range Officer
Members


Moderators


DWF Supporters


Dans Club
Forum Posts: 4207
Member Since:
December 4, 2011
sp_UserOfflineSmall Offline
10
March 4, 2025 - 8:13 am
sp_Permalink sp_Print

Dillon progressives and their powder measures are great for doing large  volume for pistol or AR etc but if you're looking for high precision charges, especially for long range rifle competitions, a single stage and a trickler are a must.

I don't like stick powder in the Dillon drops.

Anything worth doing is worth doing well.

My father

If a man designed it, and a man built it, then a man can fix it.

My grandfather

Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1627
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
11
March 4, 2025 - 11:43 am
sp_Permalink sp_Print

rwsem said
I use an RCBS Chargemaster but when being very precise I set it to throw 1-2 grains below the target and trickle up by hand to the charge I want.  I've had SDs for 20 rounds consistently run less than 10fps using that technique. Of course, this is all for a single stage reloader (Forster Co-Ax).



 I see, sounds like a good way to ensure precisely even charges.  I’m gonna buy a Hornady Powder Funnel Die and pour the charges into the case that way.  I’ll use my progressive like a turret style, but each turret has its own base shell holder. smile


Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1627
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
12
March 4, 2025 - 11:53 am
sp_Permalink sp_Print

SCORPIO said
Dillon progressives and their powder measures are great for doing large  volume for pistol or AR etc but if you're looking for high precision charges, especially for long range rifle competitions, a single stage and a trickler are a must.

I don't like stick powder in the Dillon drops.



Agree, I’ve had no issue with powder charges for 9mm using Titegroup.  They are very consistent.  My press came from a good friend (Art) and it came with tool heads and the associated dies installed on each head.  I’ve got 9mm, 38/357, 45ACP, 45LC, 44mag, 445, & 223, but I’ve only done 9mm loading up to now.  Probably about 3,500 loads of 9mm.  This switch to load 300 PRC is my first time changing the press since I got it…and first time loading a rifle round.  Thankfully Art’s been following me closely to make sure I don’t mess up!


Avatar
SCORPIO
PA

Supporter

Range Officer
Members


Moderators


DWF Supporters


Dans Club
Forum Posts: 4207
Member Since:
December 4, 2011
sp_UserOfflineSmall Offline
13
March 4, 2025 - 5:37 pm
sp_Permalink sp_Print

Dillons are so easy to convert, especially if you've got dedicated tool heads for each caliber.  Once dies are adjusted, its a 10 minute swap.

I just ran 250 357 this morning and getting ready to run some 360 tonight.  I keep looking for a good used 650 so I can have one press set up for small primers and the other for large.  That will speed up caliber swaps.

Anything worth doing is worth doing well.

My father

If a man designed it, and a man built it, then a man can fix it.

My grandfather

Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1627
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
14
March 4, 2025 - 7:21 pm
sp_Permalink sp_Print

Boy, I can understand that…It would be handy to have dedicated presses, one for small primers and one for large!


Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1627
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
15
March 8, 2025 - 8:19 pm
sp_Permalink sp_Print

IMG_6561.jpegImage Enlarger

IMG_6559.jpegImage Enlarger
IMG_6563.jpegImage Enlarger

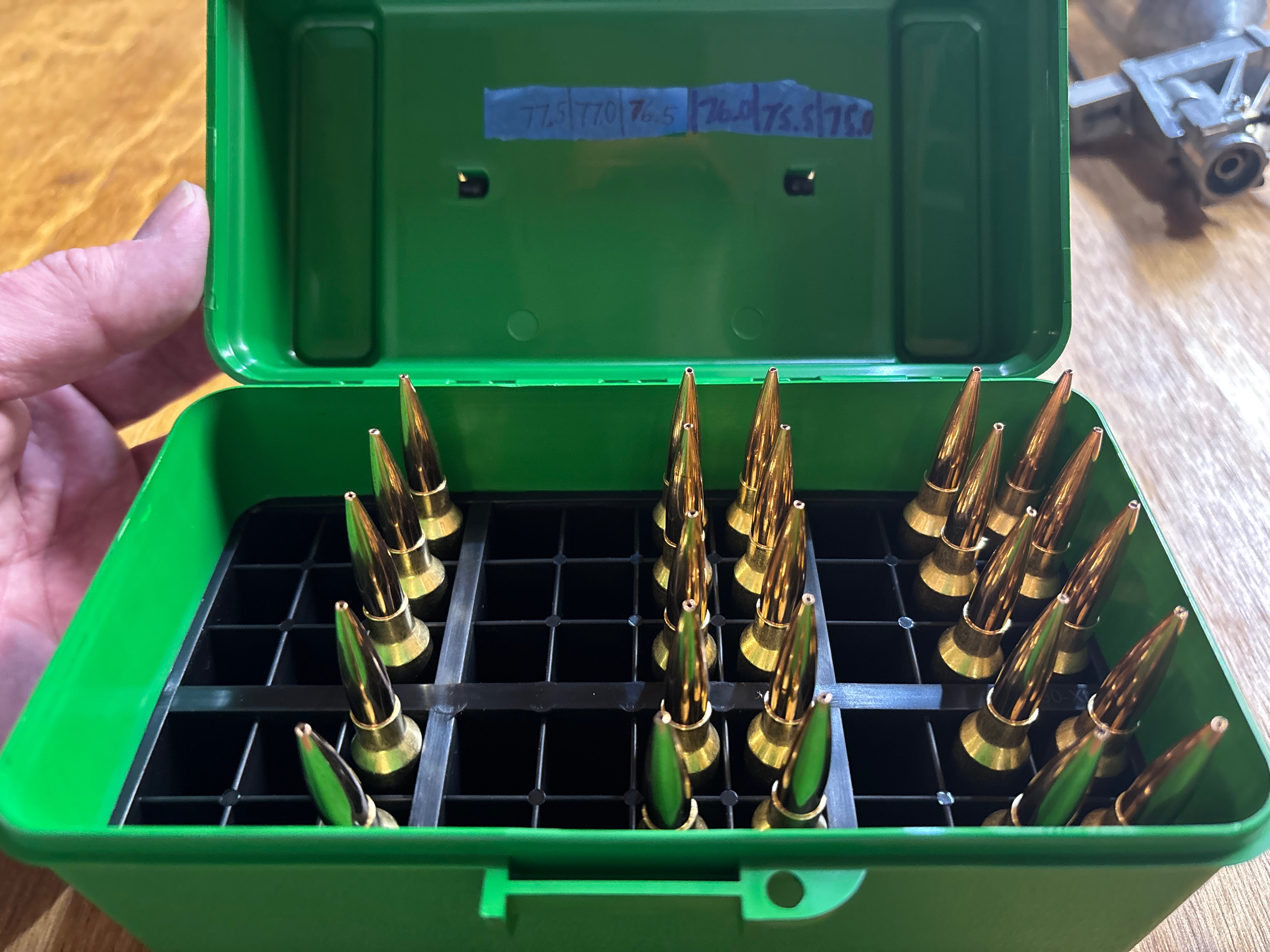

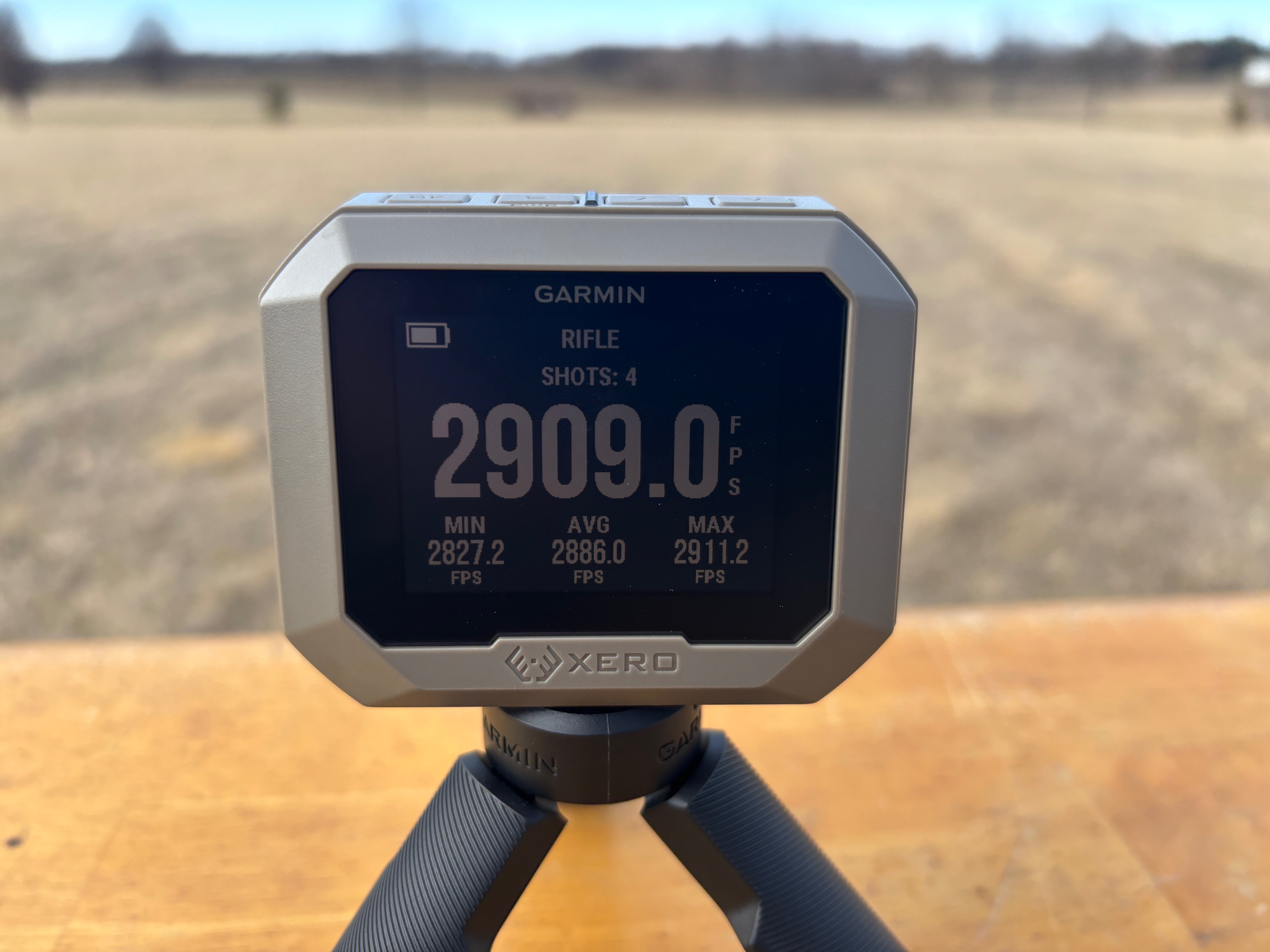

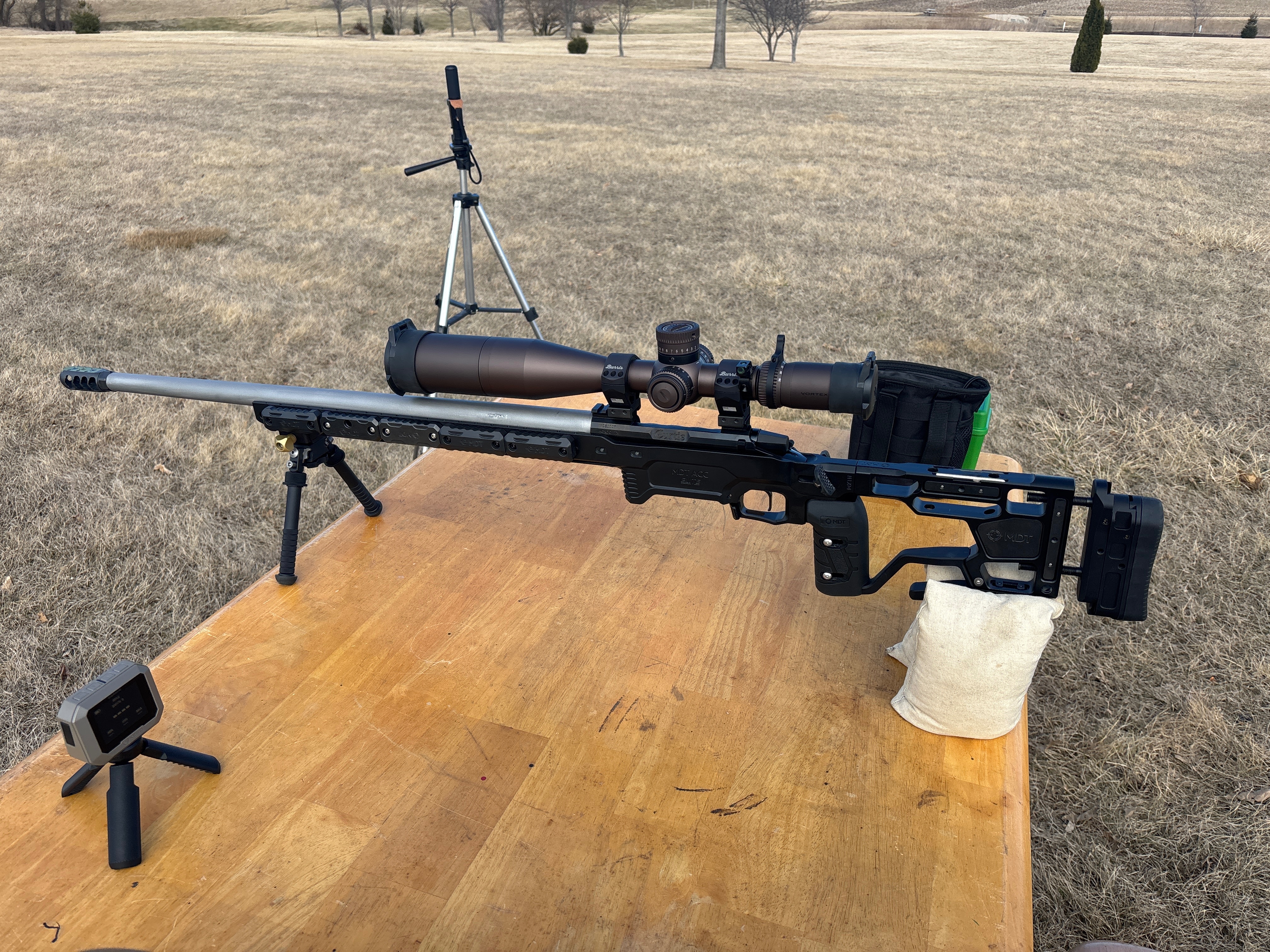

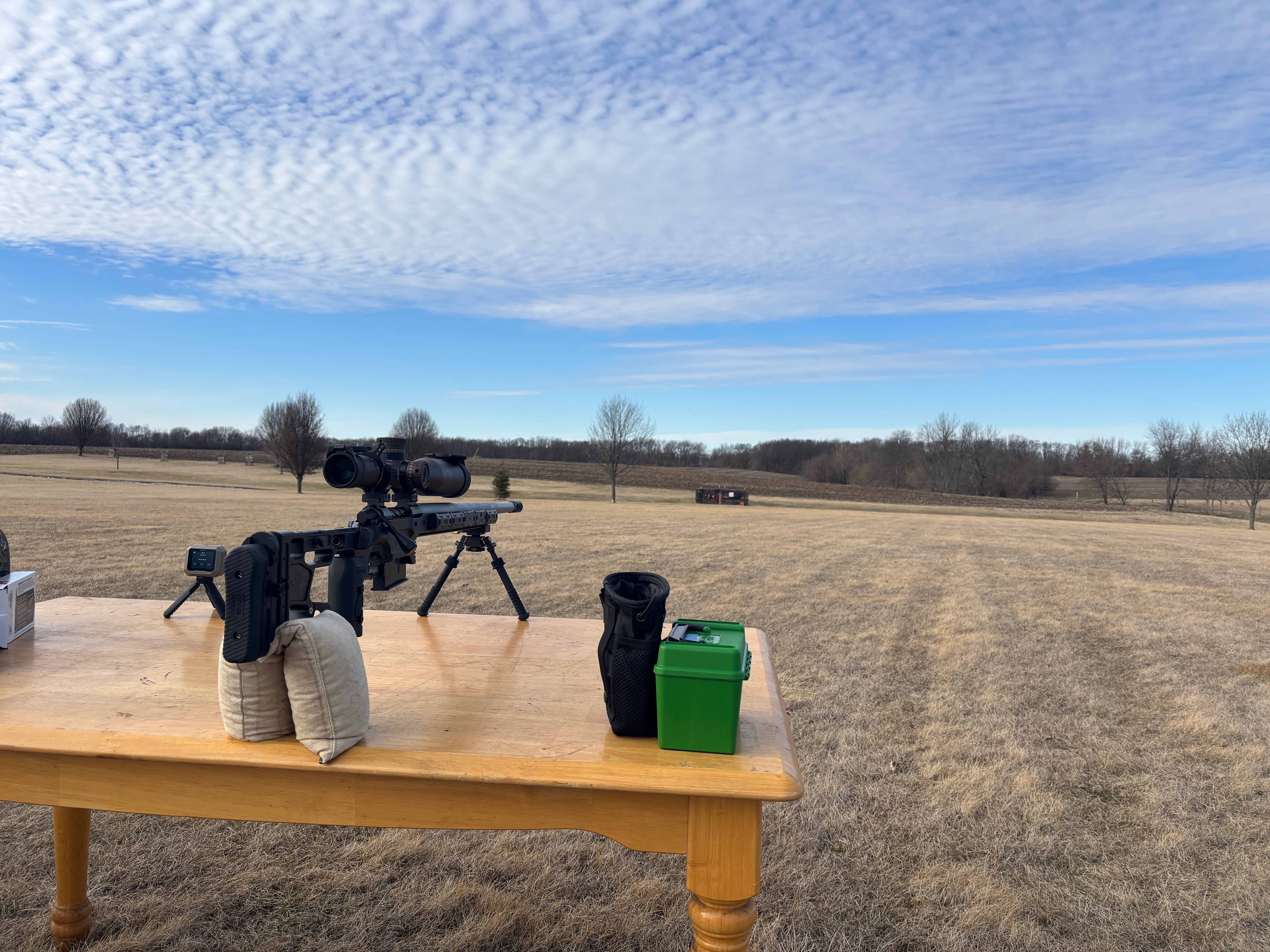

First bunch of shots thru my new custom 300 PRC rifle build.  Shooting Hornady 225gr ELD-M ammo.  Sighting the scope in and breaking in the barrel at same time.  Got lots more shots til the barrel is seasoned.  So far I’m really happy with the muzzle velocity I’m seeing!  Once seasoning is done I’ll begin shooting my custom reloads to find its preference.IMG_6547.jpegImage Enlarger


Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter
Members


Moderators


Dans Club
Forum Posts: 5405
Member Since:
February 22, 2009
sp_UserOfflineSmall Offline
16
March 9, 2025 - 8:34 am
sp_Permalink sp_Print

Technically, the glass is always full; half liquid, half air....

Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1627
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
17
March 9, 2025 - 11:03 am
sp_Permalink sp_Print

Not yet, I’m still shooting factory loads to break-in the barrel. Hopefully I’ll start shooting my reloads this week. Supposed to be upper 60’s this week!


Avatar
Charger Fan
Northern Utah

Supporter
Members


Moderators
Forum Posts: 11207
Member Since:
January 24, 2009
sp_UserOfflineSmall Offline
18
March 9, 2025 - 11:39 pm
sp_Permalink sp_Print
Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1627
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
19
March 11, 2025 - 8:08 am
sp_Permalink sp_Print

IMG_6638.pngImage Enlarger

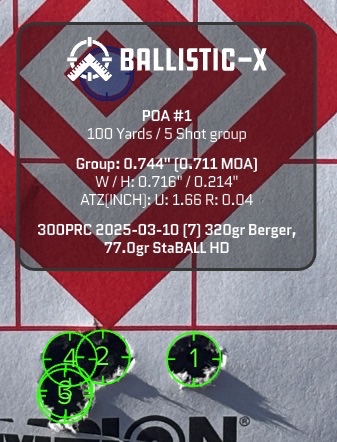

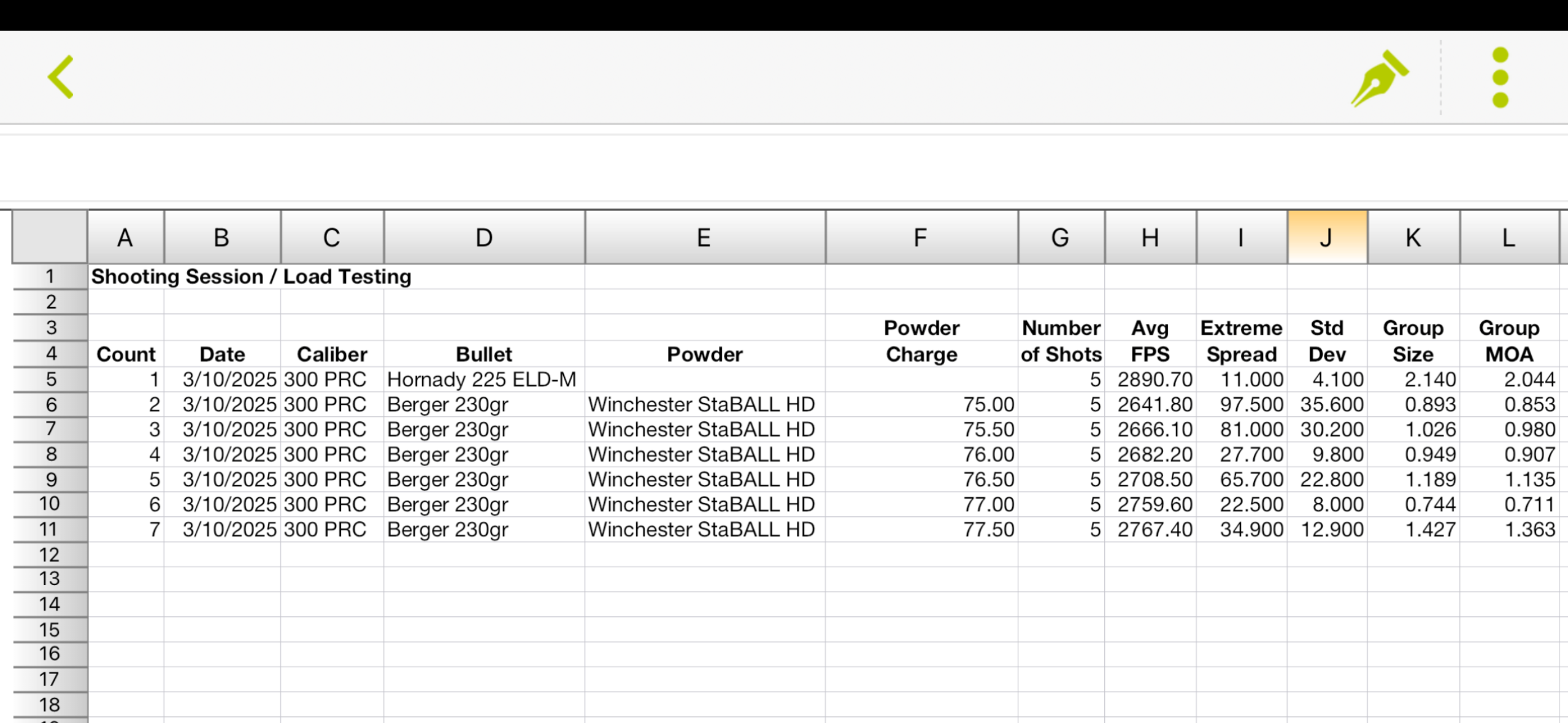

Beautiful weather yesterday.  71-deg and sunny.  A little windy, but nice.  Did some reload testing.  The spreadsheet has the details of each load.  Looks like a node at 77.0 grains I’ll need to explore further (grouping pic above).

In hopes of finding the sweet spot, I’ve also loaded up 5 rounds of 76.8gr and also 5 of 77.2gr to see if the numbers get even better just a tad below or just a tad above 77.0.  Also going to go up to 78.0gr to see if another node emerges.  Max load per Hogdgon is 78.8gr.  My plan is to not go much above 2800 FPS.  Hopefully I find a sweet spot later today, I’m getting closer.
