15-2 DA trigger problem
Avatar
stonebuster
Member
Members
Forum Posts: 298
Member Since:
August 20, 2019
sp_UserOfflineSmall Offline
1
September 4, 2019 - 7:51 am
sp_Permalink sp_Print

 Often when I pull the trigger slowly in DA, as soon as the cylinder locks up the hammer stops. It takes a enormous amount of pressure to get beyond the hitch. Enough that I don't want to force it kind of pressure. If I pull the trigger quickly it cycles normally. It does this with cylinder open or closed and it doesn't do it every time. SA is fine. I've read the average joe's tune up but what should I be looking for?

Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter
Members


Moderators


Dans Club
Forum Posts: 5353
Member Since:
February 22, 2009
sp_UserOfflineSmall Offline
2
September 4, 2019 - 7:48 pm
sp_Permalink sp_Print

Technically, the glass is always full; half liquid, half air....

Avatar
stonebuster
Member
Members
Forum Posts: 298
Member Since:
August 20, 2019
sp_UserOfflineSmall Offline
3
September 4, 2019 - 8:08 pm
sp_Permalink sp_Print sp_EditHistory

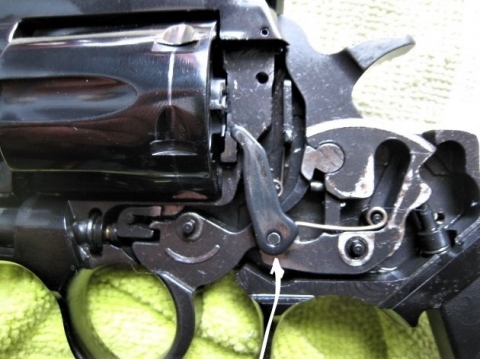

IMG_0206-3_LI.jpgImage Enlarger

Thanks, but the first thing I tried was removing the grip screw and it made no difference. My wording is probably incorrect, but it feels like some part of the DA mechanism is hanging up/not allowing the hammer to complete it's last part of it's travel and drop. I haven't had the gun completely apart yet but there are a few places like this that are scratched from wear. I think I could handle the average Joe tune up I watched although I haven't had the guts yet to go that far.

Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter
Members


Moderators


Dans Club
Forum Posts: 5353
Member Since:
February 22, 2009
sp_UserOfflineSmall Offline
4
September 5, 2019 - 5:39 am
sp_Permalink sp_Print sp_EditHistory

Rarely will anything 'hang up' in a revolver unless something broke.  It's usually a case of improperly placed springs, other parts not installed correctly, cleaning, or loose side plate screws. Go ahead and knock out the AJT- if you get stuck there's folks on here to help you out.

Technically, the glass is always full; half liquid, half air....

Avatar
stonebuster
Member
Members
Forum Posts: 298
Member Since:
August 20, 2019
sp_UserOfflineSmall Offline
5
September 5, 2019 - 12:19 pm
sp_Permalink sp_Print sp_EditHistory

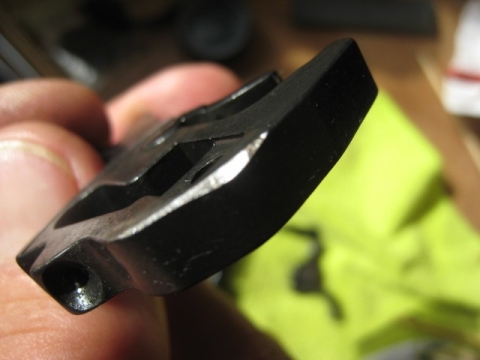

First my thanks to shootist for AJT thread. Total disassembly was much easier than I thought it would be. My trigger issue may be caused by some excessive wear/rubbing on the right side at the bottom of the hammer. I found the spot on the frame it appears to be rubbing against. I dragged a fine stone across roughest part of the hammer a couple times to smooth the edge a little and then used Mothers mag polish to slick it up. The hammer was pretty much how you see it now since I barely touched it with the stone. I polished the top of the machining marks on the frame in the area the hammer travels and gave it a deep cleaning. I put a Wolff "competition" trigger return spring in also. It's improved some but the issue is still there and I suspect the wear on the bottom of the hammer is causing it. If I pull DA very slowly the issue is obvious. If I pull DA more quickly it's not very noticeable most times. Is the hammer a drop in part or does it need to be fitted? I was afraid to get too aggressive with stoning the hammer to smooth up the worn/gauged spot. Do you think I could stone that edge smoother or would it lead to problems?IMG_0306.JPGImage Enlarger

IMG_0313-2_LI.jpgImage Enlarger

Avatar
snake-eye
Fort Myers, Florida
Member
Members


Dans Club
Forum Posts: 1967
Member Since:
December 5, 2008
sp_UserOfflineSmall Offline
6
September 5, 2019 - 1:14 pm
sp_Permalink sp_Print

It's a drop-in part. I would stone it and smooth it til it cures the problem. Note that it may not be the only place needing smoothing.

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 4090
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
7
September 7, 2019 - 6:06 pm
sp_Permalink sp_Print

Make sure the frame pins are fully seated. Very easy to tap them fully in if they are not.

Avatar
stonebuster
Member
Members
Forum Posts: 298
Member Since:
August 20, 2019
sp_UserOfflineSmall Offline
8
September 8, 2019 - 8:53 am
sp_Permalink sp_Print

Thanks, That makes sense if the hammer pivot pin wasn't seated properly it could wobble enough to allow the hammer to get out of the proper position. Ignore my reply on "spare parts" thread. I didn't know you replied here. Thanks, Ole Dog

Avatar
stonebuster
Member
Members
Forum Posts: 298
Member Since:
August 20, 2019
sp_UserOfflineSmall Offline
9
September 12, 2019 - 4:19 pm
sp_Permalink sp_Print

The pins were seated. I found a trigger and hammer less worn than mine for $40 so I installed them and still have the same issue. I removed the mainspring and gave it all a good cleaning and polished the mainspring rod/strut with Mothers to smooth it up. I've run out of ideas for the time being.

Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter
Members


Moderators


Dans Club
Forum Posts: 5353
Member Since:
February 22, 2009
sp_UserOfflineSmall Offline
10
September 13, 2019 - 5:49 am
sp_Permalink sp_Print

Have you replaced any of the springs?  Still sounds like a spring issue to me...

Technically, the glass is always full; half liquid, half air....

Avatar
stonebuster
Member
Members
Forum Posts: 298
Member Since:
August 20, 2019
sp_UserOfflineSmall Offline
11
September 13, 2019 - 7:35 am
sp_Permalink sp_Print sp_EditHistory

Could be. I replaced the trigger return spring. The mainspring & strut(rod) were taken out and cleaned up as well as the hole it sits in. It seems to function smoothly. There's so few parts inside these DWs it doesn't seem it should be difficult to figure out. Could it be the hand and star not interacting properly? Looking down the barrel and through the cylinder, all chambers look to be centered. Is the screw that holds the ball bearing the star snaps into supposed to be seated all the way in or made to be adjustable? This is my first DW so pardon any stupid questions.

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 4090
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
12
September 13, 2019 - 9:13 pm
sp_Permalink sp_Print

Ron is probably right. Check the strut spring. It could be broken of missing. The hammer has the strut attached to it. It swings in and compress the strut Pin on a spring. If the spring is broken or lost it may make the double action not work

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 4090
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
13
September 13, 2019 - 9:15 pm
sp_Permalink sp_Print

Ron is probably right. Check the strut spring. It could be broken of missing. The hammer has the strut attached to it. It swings in and compress the strut Pin on a spring. If the spring is broken or lost it may make the double action not work. The trigger return spring may be falling off the ledge when you put the side plate on. You have to hold your upper lip just right to get it right.

Avatar
stonebuster
Member
Members
Forum Posts: 298
Member Since:
August 20, 2019
sp_UserOfflineSmall Offline
14
September 14, 2019 - 9:25 am
sp_Permalink sp_Print sp_EditHistory

I guess I should have said strut spring instead of mainspring to make myself more clear in post #11. I took the spring and strut out and inspected them. I thoroughly cleaned both and polished the strut. I cleaned the hole the strut and spring seats in. After reinstalling the strut spring and hammer only, the hammer pulled back and forward smoothly using my finger. The trigger return spring seems to be staying on the "ledge" where it belongs. The DA does work but not smoothly if the trigger is pulled slowly. SA is fine. It's not a big deal but would be nice to have a good, consistent DA trigger. It feels like something is interfering with the last of the hammer travel at or just before lockup.

Avatar
snake-eye
Fort Myers, Florida
Member
Members


Dans Club
Forum Posts: 1967
Member Since:
December 5, 2008
sp_UserOfflineSmall Offline
15
September 14, 2019 - 2:53 pm
sp_Permalink sp_Print

I would also check the detent ball and spring. If it is too loose, it will cause problems. You have to remove the hammer to adjust the retention screw. The screw should be roughly level with the frame.

Sounds like you are on the way to finding your problem. Keep going! cool
