Does anybody have a DW with the hammer bobbed completely off? I remember we saw one on GB awhile back with a semi-bob done to it.
I was thinking of completely bobbing one of my 14-2's hammers--just not sure if I will get reliable ignition with the lighter mass hammer.
I'd probably remove the single action notch also and make it a pure DAO. I love the looks of this ruger..
I thought I'd toss this out to the masses before I destroy a DW hammer
... Then again, I could probably have a replacement made -- where's EWK's phone number
?
SHOOT
Supporter
Moderators
January 24, 2009
Offline
I would think that at the very minimum, you would need a hammer spring change...but..wow, does that look slick!
Just imagine that thing polished!
Sorry folks, back to your regularly scheduled programming...
Range Officer
Range Officers
Dans Club
March 27, 2009
Offline
Now you got me thinking! Drill and tap it so you could add weight if needed or a hammer spur custom! another thought!!
May 17, 2010
Offline
That is a very clean and polished look. Indeed an aftermarket Hammer might be kinda neat option to have.
Soap Box, Ballot Box, Ammo Box
in that order.
4 Monson Model 15's
1 Palmer FB 15
1 Rossi 357 Model 92 (lever)
1 CZ 75B
Supporter
Range Officer
Range Officers
May 2, 2009
Offline
Well, I think I'm going to go for it–worst case scenario I destroy a hammer… Here's a 30 second photo edit…I'm gonna lose a lot of mass….
I have to go out of town this weekend, but when i get back I'll break out the dremel !!!
February 16, 2010
Offline
Is it hammer mass that delivers the energy or is it spring tension?
Supporter
Range Officer
Range Officers
May 2, 2009
Offline
Zundfolge said:
Is it hammer mass that delivers the energy or is it spring tension?
It is a little bit of both, but hammer mass plays an important role for consistent ignition. The spring gets it moving, but he weight transfer keeps it going.
SHOOT
January 22, 2008
Offline
But wouldn't a lighter hammer accelerate quicker, and possibly reach a greater velocity? I guess this could depend on weather an unmodified hammer is still accelerating when is strikes the firing pin. If it is, then a lighter hammer could have similar kinetic energy.
Where are the mechanical engineers or physicists when you need one.
-Wayne
Dans Club
March 2, 2008
Offline
Interesting project. I'd weigh that hammer before and after to determine how much weight is lost. As a layman, I think that a lighter hammer means less inertia to overcome and possibly more velocity to help overcome the lost weight. Also, when you look at the hammer, there is still a lot of mass remaining.
Fortunately, a Mechanical Engineer that I know pretty well (more than pretty well, she's my daughter) is good at helping me with hard stuff like this.
I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.
George Carlin
Range Officer
Range Officers
Dans Club
March 27, 2009
Offline
Here is one you could pick up and practice on too make a matched pair,,, Who was looking for a 722? http://www.gunbroker.com/Auction/ViewItem.aspx?Item=204890203
If it works out Shoot I have a frw extra hammers to play with!
Supporter
Range Officer
Range Officers
May 2, 2009
Offline
DWA_Midwest said:
Here is one you could pick up and practice on too make a matched pair,,, Who was looking for a 722? http://www.gunbroker.com/Auction/ViewItem.aspx?Item=204890203
If it works out Shoot I have a frw extra hammers to play with!
I saw that the minute it was listed--tried to do an offline buy, but the seller wanted to let it ride...
SHOOT
Supporter
Moderators
Dans Club
February 22, 2009
Offline
Technically, the glass is always full; half liquid, half air....
February 20, 2008
Offline
If it were me, I would get a hold of a second hammer to do it on, this way you can always switch back.
I have two S&W Mod 36 J frames that are bobbed for front pocket carry...the second one is stainless which I just picked up...love them both dearly.
If you're going to drink, don't drive. Don't even putt.
Supporter
Range Officer
Range Officers
May 2, 2009
Offline

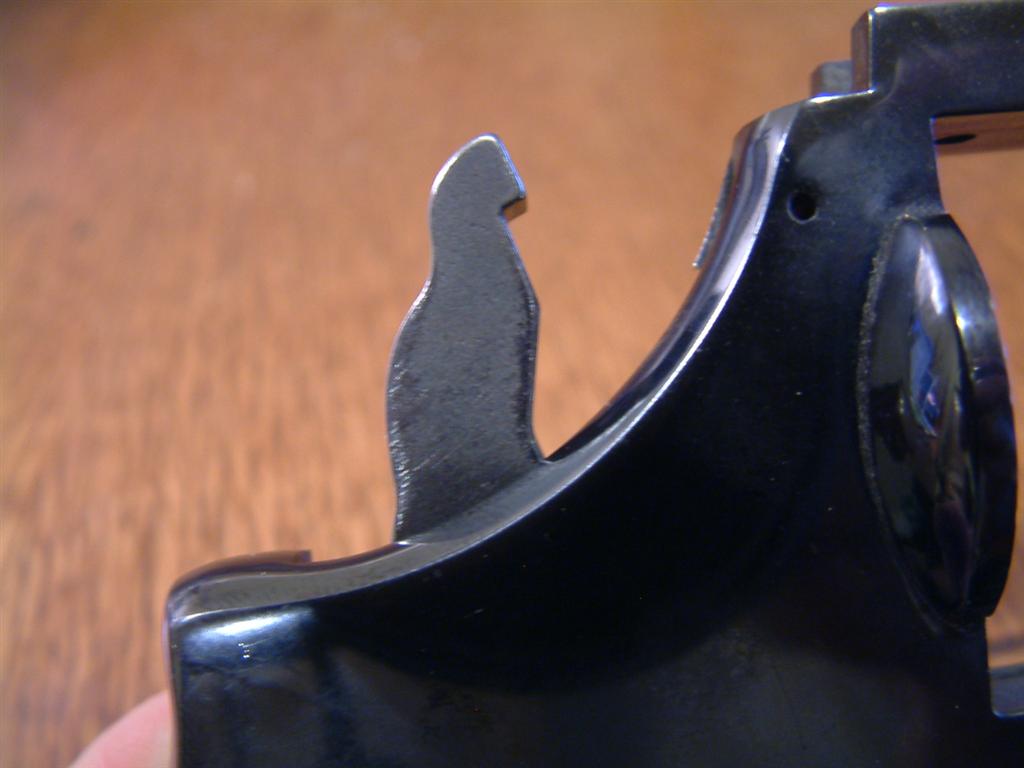

The initial cut...
... I'll do some grinding on it next to blend the back to the frame as best I can.
Should be a fun project... If it fires reliably, I'll give it a super tune this winter. I'm in the market for a beater 14-2 or 714. I want to "melt" it (remove all the corners/sharp edges) and come up with the perfect DW carry gun.
SHOOT
Supporter
Moderators
January 24, 2009
Offline
Do you have a welder? You could add a little metal between the cut off spur & the top of the hammer & maybe gain some weight back. Plus, it would make it look more clean...more like it was meant to be there.
Supporter
Range Officer
Range Officers
May 2, 2009
Offline
Charger Fan said:
Do you have a welder? You could add a little metal between the cut off spur & the top of the hammer & maybe gain some weight back. Plus, it would make it look more clean...more like it was meant to be there.
I do have a nice MIG welder, just not sure if welding on gun parts is my area of expertise yet ...
I agree it would look better if I could get it to blend with the back of the frame--If you look at that area on a DW, it will not be flush with a standard bob job.
SHOOT
Supporter
Moderators
January 24, 2009
Offline
SHOOTIST357 said:
I agree it would look better if I could get it to blend with the back of the frame--If you look at that area on a DW, it will not be flush with a standard bob job.
Well, if it ends up looking more like a bobbed DW AC style hammer, that would still be pretty cool.
Now if you could find some cast rocker arms (or simialar) to practice the 'ol MIG on, that may just be the ticket.
September 26, 2010
Offline
Do the pencil test. Open the cylinder, point the gun strait up, drop a pencil down the barrel with the eraser resting on the firing pin and dry fire it. Note how far the pencil flies in the air before and after.
* double action is a lot softer than single action because than hammer doesn't travel as far back.
Supporter
Range Officer
Range Officers
May 2, 2009
Offline

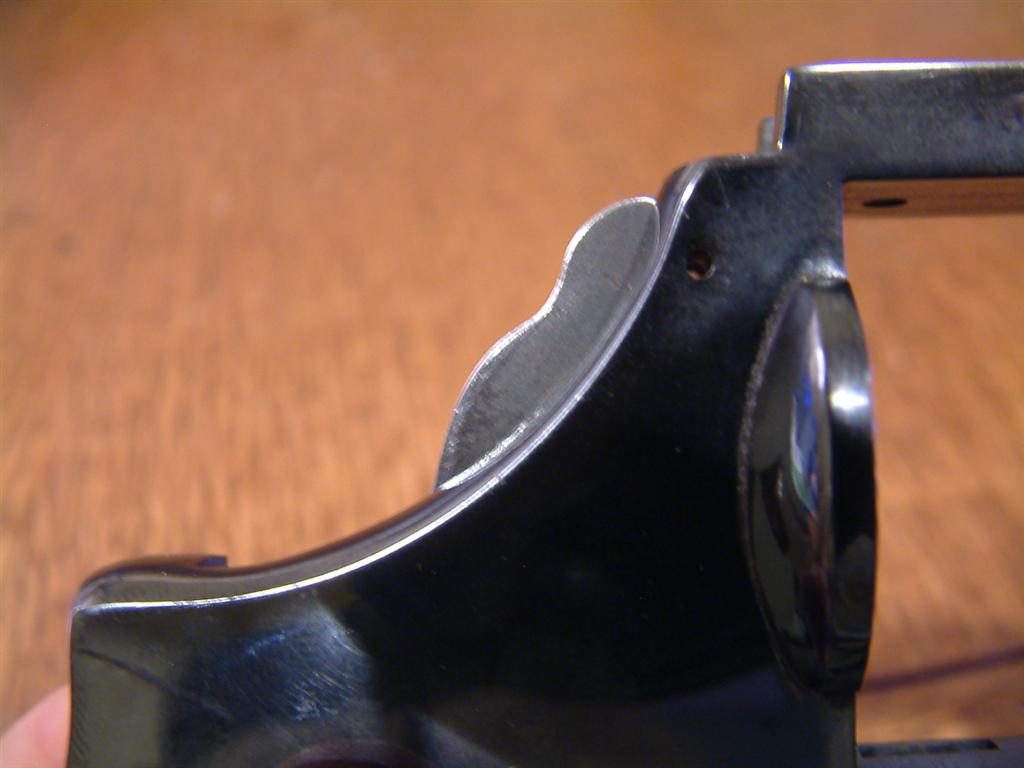

I'll call her the "Humpback" DW
....

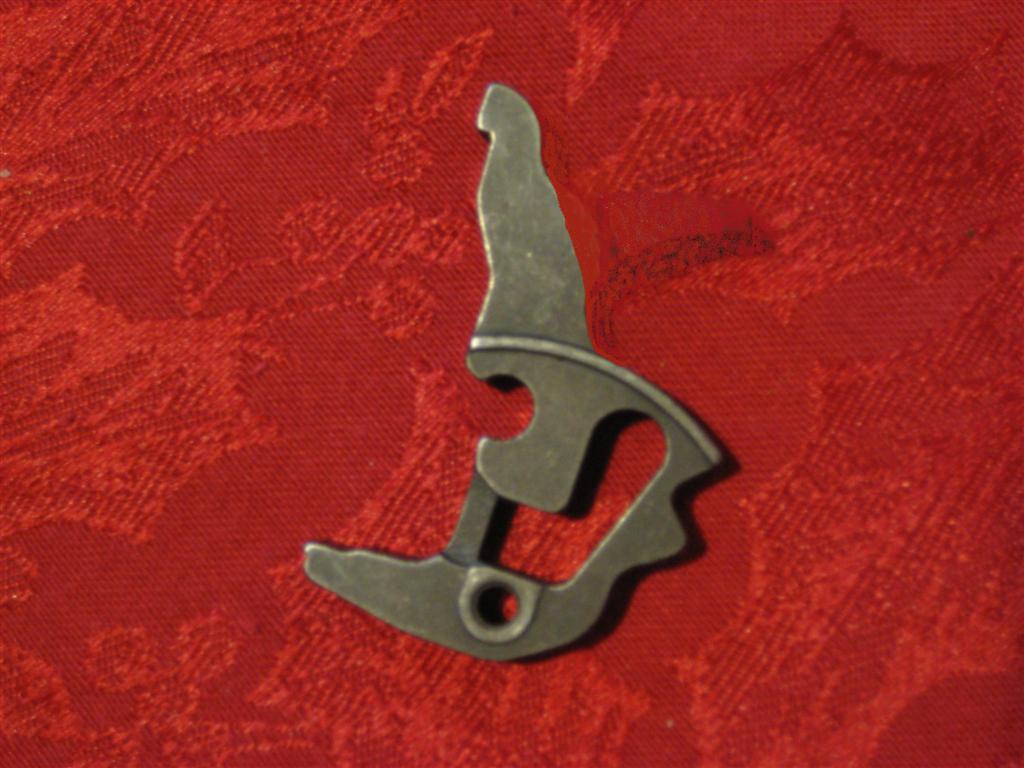

Did some initial cutting on the hammer today and this is how she ended up--I still need to do some minor contour work and then final polishing before the Blue.

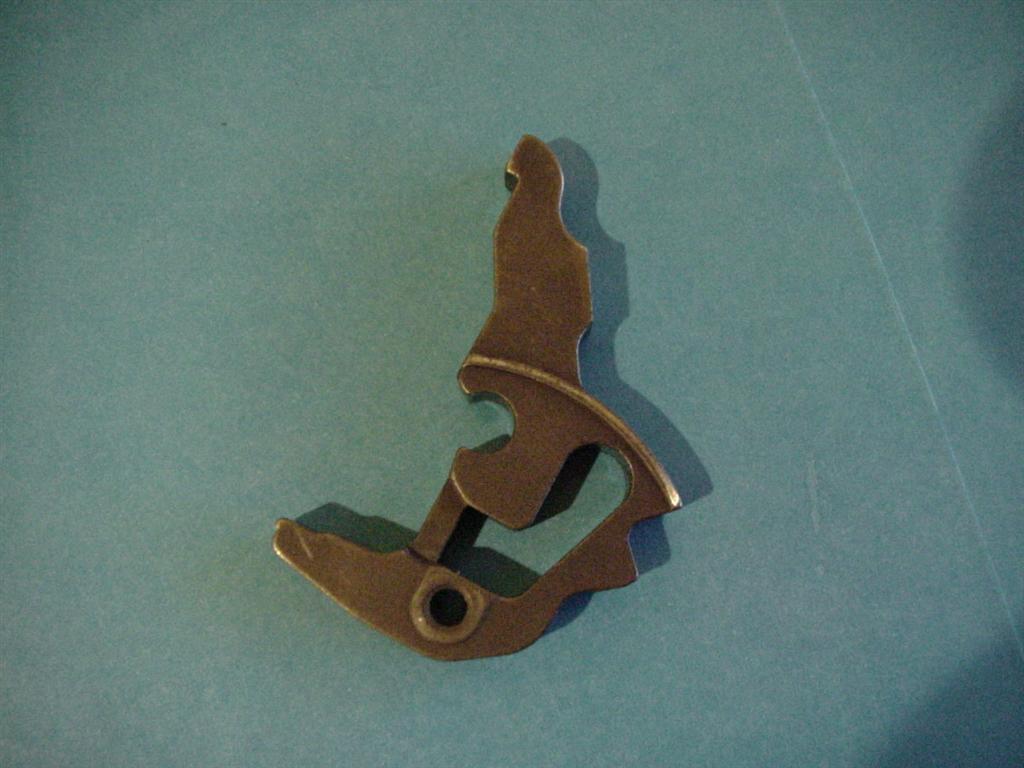

The stock hammer is 573.6 grains; the new bobbed hammer is currently 492 grains. Loss of 81.6 grains. Only some range testing will tell if we have a winner or not. More to come...
SHOOT
woops, I meant...
