First Blueing Job 8" VH
Avatar
Klamtucky
Oregon
Member
Members
Forum Posts: 74
Member Since:
October 28, 2014
sp_UserOfflineSmall Offline
1
March 21, 2015 - 4:48 pm
sp_Permalink sp_Print

I got this barrel on GB it said ready to re blue only had 2 photos 1 of each side. When I got it someone had taken a wheel to the whole thing
buffed off all the matte finish on the rib ,end and top of the barrel. big deep scratches and pits. I was pretty disappointed to say the least.
A fellow let me use his shop and polish tape and bead blast the rib ends and top of the barrel. Just finished the bluing today.
It turned out pretty good now I am happier.

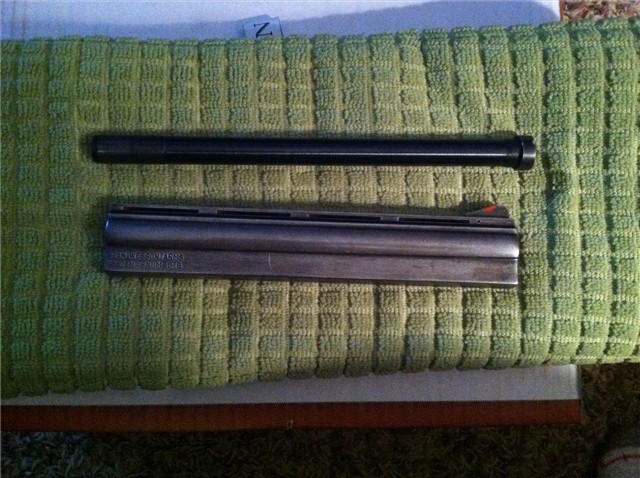

The green background is before

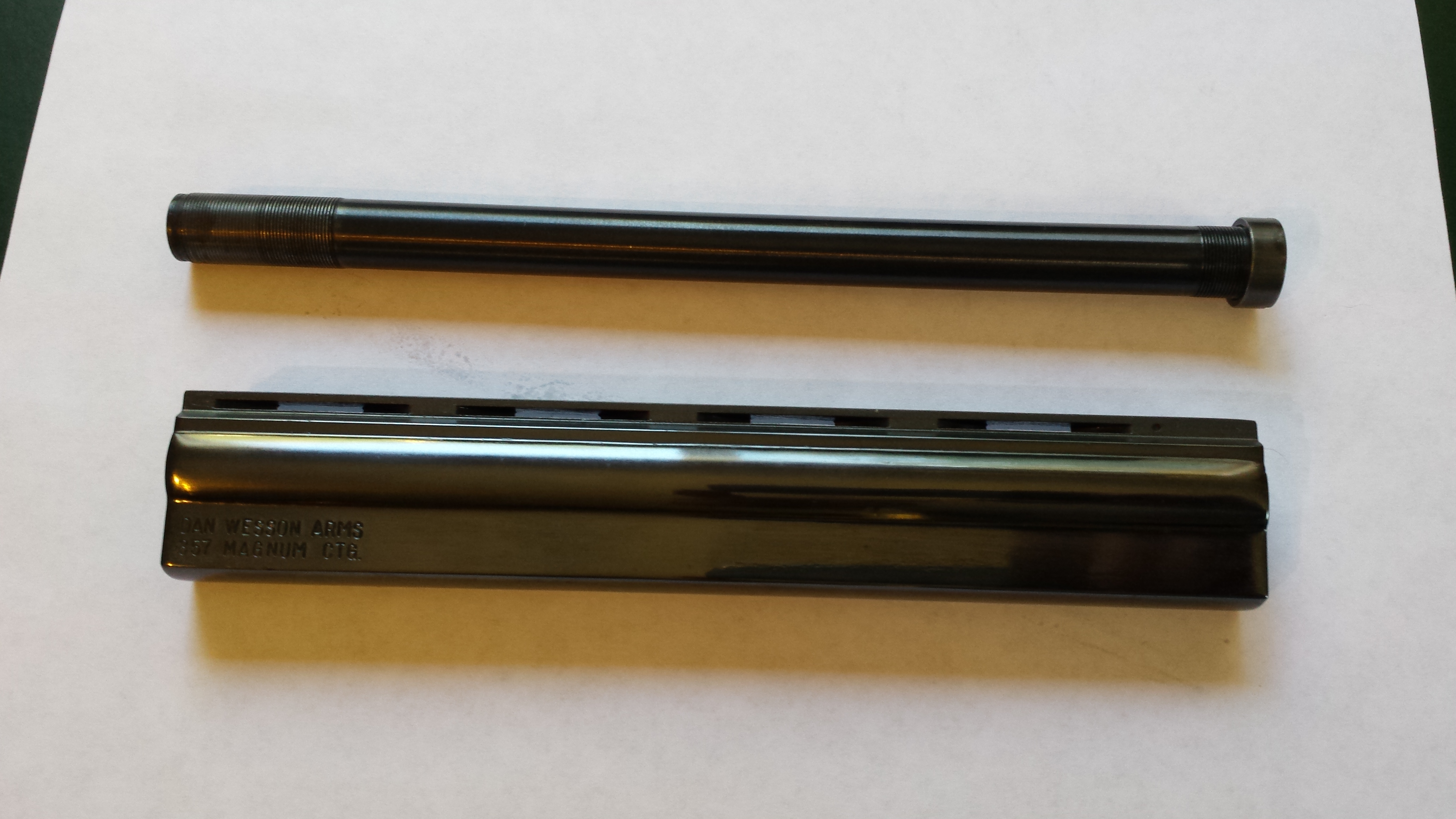

White is after.pix035351731.jpgImage Enlarger

20150321_133523.jpgImage Enlarger

Avatar
Steve
Member

Dans Club
Forum Posts: 10330
Member Since:
March 2, 2008
sp_UserOfflineSmall Offline
2
March 21, 2015 - 4:55 pm
sp_Permalink sp_Print

Mark- Really nice work!

Could you help us out and tell us more about your prep and bluing procedures?

I'm thinking that more than a few people here would like to know.

I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.

George Carlin

Avatar
Klamtucky
Oregon
Member
Members
Forum Posts: 74
Member Since:
October 28, 2014
sp_UserOfflineSmall Offline
3
March 21, 2015 - 5:12 pm
sp_Permalink sp_Print

Sure used green 600 grit putty on a cotton wheel until it was like chrome. Then I took black gorilla Tape to mask off the top of the barrel, so the rib top 1/8 inch of the shroud and the front where the only thing showing. Then I bead blasted with the smallest glass beads to be had. The tanks where old metal troughs. one with a degreaser one with water and 1 with brownells bluing salts. heated up the degreaser to about 200 degrees.
same with the water. Waited until the salts was at 280 degrees to 290 put in the shroud with an attached wire through the sight screw hole.
just kept taking it in and out to watch about when it started to turn. Took about 20 minutes to start. In a around 10 minutes later it was the color I liked took it out put it in the 200 degree water for a few, washed it in cold water and oiled it up super heavy. Just wiped it clean and Its like a new shroud. Putting leupold clamp rings on it and a leupold m8 2x eer scope when I can find one that is a fair price :)
My eye sight is not as good as it used to be way out there so can't wait to scope it up for my 15-2.
Steve I Hope that was not to wordy of a description.

Avatar
Maxwell 'Arlen' Silver

Supporter
Members
Forum Posts: 489
Member Since:
June 25, 2013
sp_UserOfflineSmall Offline
4
March 21, 2015 - 6:01 pm
sp_Permalink sp_Print sp_EditHistory

great hot blue job.

questions, at 600 grit polish and wheel did it come out as a satin finish?

Cotton wheel, soft or hard?

Did you go after the scratches and pits first with wet and dry paper?

Any filing?

Endeavor to persevere,
Press on regardless.
Need little, want less, love more.

Avatar
zoommb
People's Republic of Illinois

Range Officer
Members


Range Officers


Dans Club
Forum Posts: 3161
Member Since:
February 28, 2009
sp_UserOfflineSmall Offline
5
March 21, 2015 - 6:06 pm
sp_Permalink sp_Print

Really, really nice job.

Congrats on attacking a problem and solving it.

-Mike


Avatar
Klamtucky
Oregon
Member
Members
Forum Posts: 74
Member Since:
October 28, 2014
sp_UserOfflineSmall Offline
6
March 21, 2015 - 6:26 pm
sp_Permalink sp_Print sp_EditHistory

Reply to Maxwell
The first wheel was a harder one finished it off with a softer wheel. It turned out pretty high polish. Oh I forgot I first used a red polish paste for the bigger spots.
one of the pit groups I got out with a fine file, it was on the flat lower part of the shroud. the other ones I just buffed as good as I could, they were
on the rounded part of the shroud and the more I messed with them the worse they seemed to get they were deep. So I got them where I could live with them and quit.
Wish I would have worked on the top of the shroud a little more their were some small pits there. I thought once bead blasted and blued they would not show but if the light is right you can still see them.
But overall with the way this looked when I got it, I am very pleased.
Thanks Zoommb :)

Avatar
ese927
SHELBYVILLE, KENTUCKY
Member
Members


Dans Club
Forum Posts: 1360
Member Since:
April 18, 2014
sp_UserOfflineSmall Offline
7
March 21, 2015 - 9:09 pm
sp_Permalink sp_Print

Oath Keeper #021479 NRA #206814004
Member AAGSR Member AGA #83120600233

"To preserve liberty, it is essential that the whole body of the people always possess arms and be taught alike, especially when young, how to use them."

Richard Henry Lee
American Statesman, 1788

Avatar
EWK_Stuff
Richmond, OH
Member
Members
Forum Posts: 608
Member Since:
October 13, 2009
sp_UserOfflineSmall Offline
Avatar
Klamtucky
Oregon
Member
Members
Forum Posts: 74
Member Since:
October 28, 2014
sp_UserOfflineSmall Offline
9
March 23, 2015 - 5:58 pm
sp_Permalink sp_Print

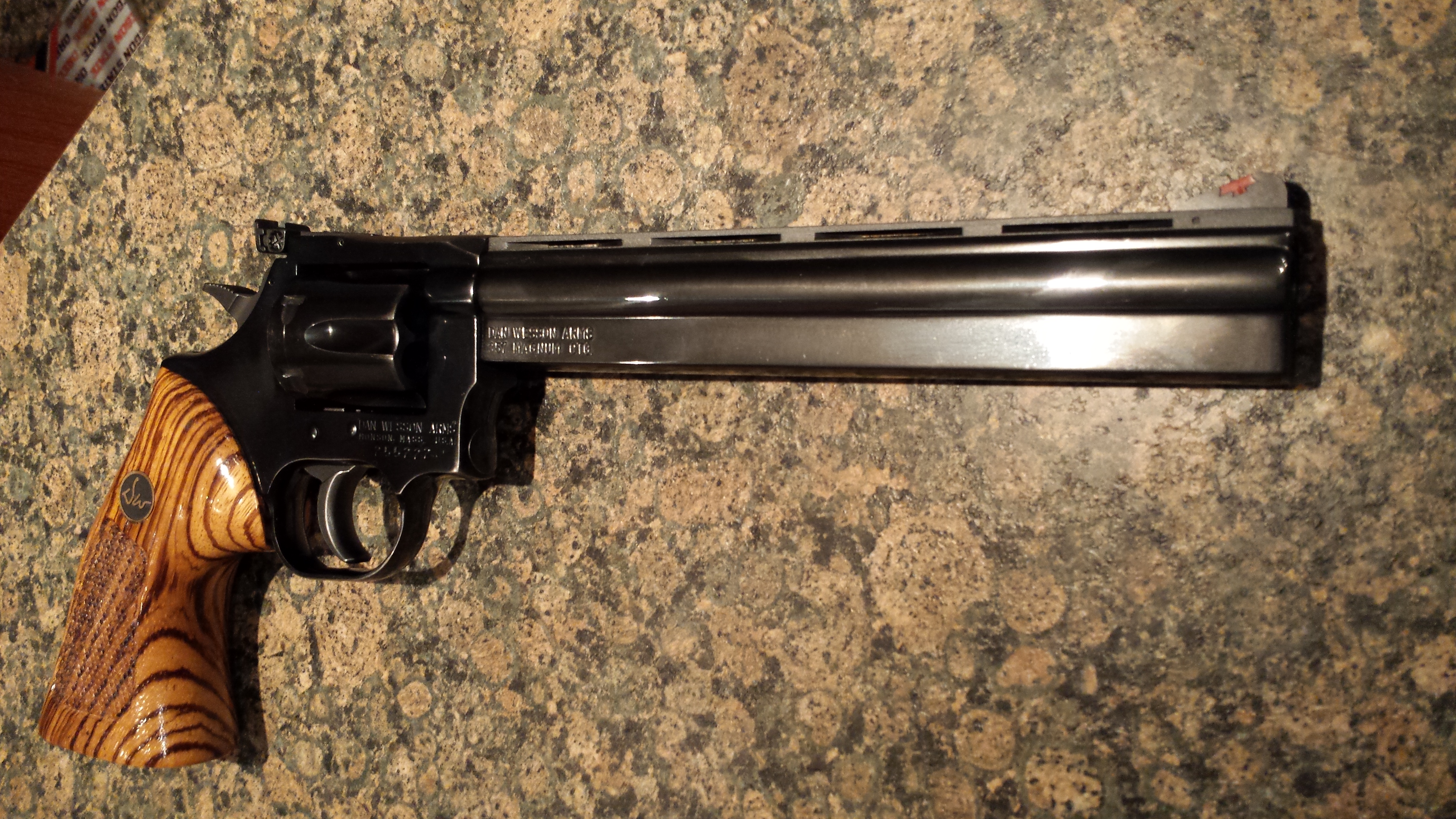

Finally Put the new to me barrel on and shot it. Shoots great.20150322_224620.jpgImage Enlarger

Avatar
ese927
SHELBYVILLE, KENTUCKY
Member
Members


Dans Club
Forum Posts: 1360
Member Since:
April 18, 2014
sp_UserOfflineSmall Offline
10
March 23, 2015 - 6:24 pm
sp_Permalink sp_Print

Oath Keeper #021479 NRA #206814004
Member AAGSR Member AGA #83120600233

"To preserve liberty, it is essential that the whole body of the people always possess arms and be taught alike, especially when young, how to use them."

Richard Henry Lee
American Statesman, 1788

Avatar
Bob
Lake Worth, FL
Member
Members
Forum Posts: 51
Member Since:
July 9, 2013
sp_UserOfflineSmall Offline
Avatar
Zedbra
Squamish, British Columbia
Member
Members


Dans Club
Forum Posts: 661
Member Since:
January 17, 2015
sp_UserOfflineSmall Offline
Avatar
Dave_Ks
Kansas

Range Officer
Members


Range Officers


Dans Club
Forum Posts: 4300
Member Since:
March 27, 2009
sp_UserOfflineSmall Offline
13
March 24, 2015 - 8:46 pm
sp_Permalink sp_Print

May have missed your calling!    About how long did it take start to final blueing?    Looks dang good from here.


Avatar
Klamtucky
Oregon
Member
Members
Forum Posts: 74
Member Since:
October 28, 2014
sp_UserOfflineSmall Offline
14
March 25, 2015 - 2:25 am
sp_Permalink sp_Print

Dave_Ks said

May have missed your calling!    About how long did it take start to final blueing?    Looks dang good from here.

Couple of hour's but there was a lot of Bs ING in-between ;-)

Avatar
photohause
Sebastian, FL
Member
Members
Forum Posts: 2253
Member Since:
February 20, 2008
sp_UserOfflineSmall Offline
15
March 28, 2015 - 12:54 pm
sp_Permalink sp_Print

Very nice job-thanks for sharing...definitely not to wordy....many of us like to learn.


 If you're going to drink, don't drive. Don't even putt.

Avatar
DPNM1A
South of the Burgh, PGH
Member
Members
Forum Posts: 119
Member Since:
December 25, 2014
sp_UserOfflineSmall Offline
16
March 28, 2015 - 10:36 pm
sp_Permalink sp_Print

Very nice job. Well done! Thank you for posting this, I learned something.

Lets Go PENs!!!

Avatar
Klamtucky
Oregon
Member
Members
Forum Posts: 74
Member Since:
October 28, 2014
sp_UserOfflineSmall Offline
17
April 9, 2015 - 10:16 pm
sp_Permalink sp_Print

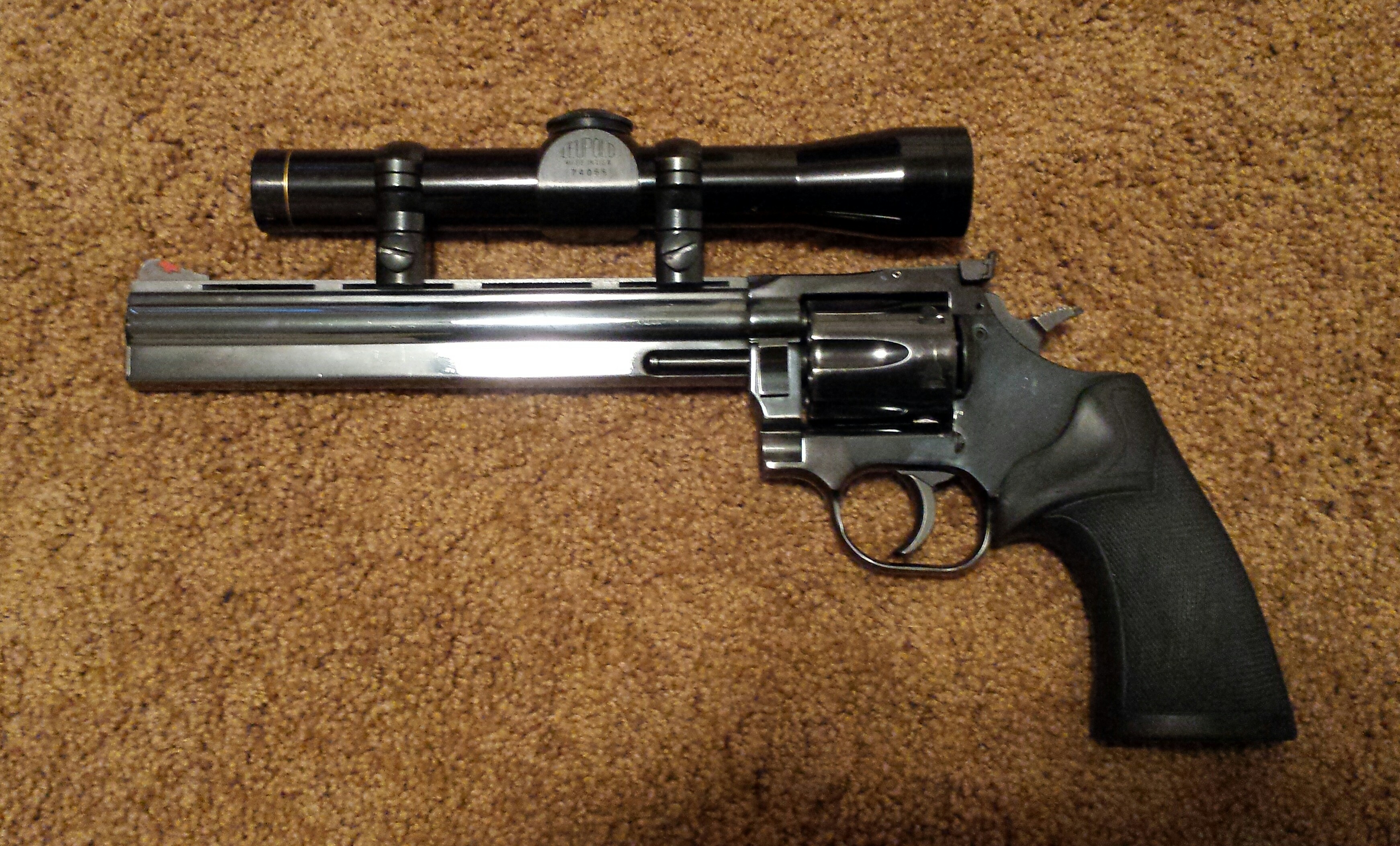

All scoped up Leupold clamp rings and Leupold M8 2x E'ER
Shooting it tomorrow can't wait. 20150409_1908342.jpgImage Enlarger

Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter
Members


Moderators


Dans Club
Forum Posts: 5347
Member Since:
February 22, 2009
sp_UserOfflineSmall Offline
18
April 10, 2015 - 6:31 am
sp_Permalink sp_Print

Technically, the glass is always full; half liquid, half air....
