Large Frame Disassembly Tutorial Pic's
Avatar
Charger Fan
Northern Utah

Supporter
Members


Moderators
Forum Posts: 11170
Member Since:
January 24, 2009
sp_UserOfflineSmall Offline
61
November 13, 2017 - 11:31 pm
sp_Permalink sp_Print

super357guy said
could you just send the pics to the mods here and they could post them permanently from their server?

I am a Mod.wink  Sez so at the bottom of this screen.big-grin

I had difficulty uploading the pics to this site, then trying to paste them where they needed to be, between the lines of text. After fighting the system (and before shooting my computer), I gave up & created a new Flickr account & loaded them to that server, then pasted them where they needed to be. They show up on my end, let me know if they don't show up on yours (1st post on page 1).

Avatar
bikeridertim
Concord NC 28025

Supporter
Members


DWF Supporters
Forum Posts: 356
Member Since:
February 16, 2013
sp_UserOfflineSmall Offline
62
November 14, 2017 - 6:45 pm
sp_Permalink sp_Print

Charger Fan said

I am a Mod.wink  Sez so at the bottom of this screen.big-grin

I had difficulty uploading the pics to this site, then trying to paste them where they needed to be, between the lines of text. After fighting the system (and before shooting my computer), I gave up & created a new Flickr account & loaded them to that server, then pasted them where they needed to be. They show up on my end, let me know if they don't show up on yours (1st post on page 1).

I'm seeing them!

Thank you, I have a .41 that I want to clean! occasion




Avatar
super357guy
Member
Members
Forum Posts: 108
Member Since:
August 9, 2015
sp_UserOfflineSmall Offline
63
November 14, 2017 - 7:30 pm
sp_Permalink sp_Print

Charger Fan said

I am a Mod.wink  Sez so at the bottom of this screen.big-grin

I had difficulty uploading the pics to this site, then trying to paste them where they needed to be, between the lines of text. After fighting the system (and before shooting my computer), I gave up & created a new Flickr account & loaded them to that server, then pasted them where they needed to be. They show up on my end, let me know if they don't show up on yours (1st post on page 1).

Yep I see them now, thank you very much.

Avatar
MACE_Hardware
Member
Members
Forum Posts: 8
Member Since:
September 4, 2018
sp_UserOfflineSmall Offline
64
September 4, 2018 - 8:59 pm
sp_Permalink sp_Print sp_EditHistory

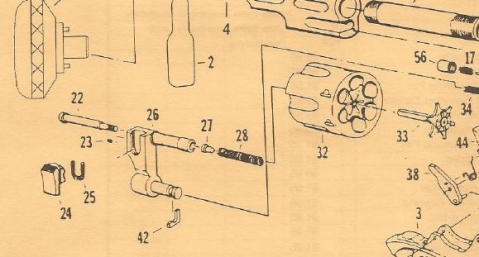

If I want to further disassemble the cylinder and crane, do I just use some soft jaws and unscrew the #22 ejector rod from the #33 extractor?  If so, is it a standard RH thread?

Crain-Assy.JPGImage Enlarger

Edit to Add - Great thread.  I'm learning a whole lot from this forum.

"Admire those who succeed and learn from their success."

Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter
Members


Moderators


Dans Club
Forum Posts: 5343
Member Since:
February 22, 2009
sp_UserOfflineSmall Offline
65
September 5, 2018 - 12:53 pm
sp_Permalink sp_Print

Technically, the glass is always full; half liquid, half air....

Avatar
SCORPIO
PA

Supporter

Range Officer
Members


Moderators


DWF Supporters


Dans Club
Forum Posts: 4015
Member Since:
December 4, 2011
sp_UserOfflineSmall Offline
66
February 13, 2024 - 10:38 am
sp_Permalink sp_Print

How is the bolt retained and removed?

I have a 375 Supermag with a lot of slop in the cylinder when in lock up and the bolt appears worn and rough.  I got all new bolt, plunger, and springs and I want to replace that bolt but I have no idea how it's attached.  Nome of the pics in this thread address it and none of the videos I've seen on YouTube mention the bolt.



I have a used large frame trigger group I got at an auction I'm using as a learning aid to train myself on the process but it doesn't help much with the bolt.

Also, the parts diagram on the DW site seems to have some parts missing labeled which isn't helping me either.

Any help appreciated.

Anything worth doing is worth doing well.

My father

If a man designed it, and a man built it, then a man can fix it.

My grandfather

Avatar
superdan
Eau Claire, WI
Member
Members
Forum Posts: 354
Member Since:
October 26, 2008
sp_UserOfflineSmall Offline
67
February 13, 2024 - 8:53 pm
sp_Permalink sp_Print sp_EditHistory

The crane holds the bolt in. Remove the crane lock and open the cylinder then the crane assembly will come out the front freeing up the bolt to be removed from the bottom. Usually they just about fly out.

Avatar
SCORPIO
PA

Supporter

Range Officer
Members


Moderators


DWF Supporters


Dans Club
Forum Posts: 4015
Member Since:
December 4, 2011
sp_UserOfflineSmall Offline
68
February 19, 2024 - 9:17 pm
sp_Permalink sp_Print sp_EditHistory

Thanks for the help superdan. I got it torn down, repaired and reassembled today.

It turns out, the sloppy cylinder was mainly caused by the cylinder alignment ball retention screw being almost totally backed out of the threads.  One turn and it fell out.

The string and fishing line hack was the ticket, it made reassembly easy.  Hardest part for me was tying the knot in the string, lol.  I found that holding the trigger group in a rubber jawed hand clamp, made a nice holding fixture.

Anything worth doing is worth doing well.

My father

If a man designed it, and a man built it, then a man can fix it.

My grandfather

Avatar
capt jack
Member

Dans Club
Forum Posts: 211
Member Since:
August 13, 2022
sp_UserOfflineSmall Offline
69
March 14, 2024 - 8:54 am
sp_Permalink sp_Print

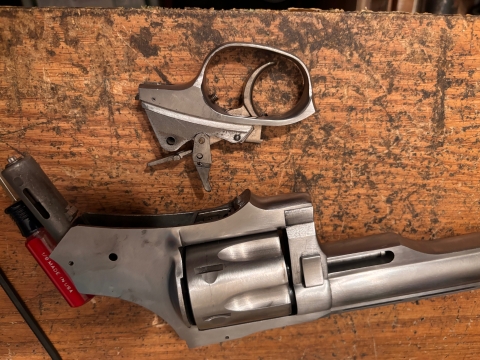

my first piece of advice, do not disassemble large frame if not necessary….. i did, i have done so many DW15’s just figured this one will also be easy…it is not
getting the trigger assy back in the frame with hand and transfer bar in correct position is no small feat ….couple hours later finally got it changing how i was holding the frame…now for the rookie mistake, forget to put the cylinder in first. Back apart put the cylinder in, second time got the trigger assy back in pretty quick.
I am now a graduate of self designated DW large frame gunsmith academy.

Avatar
SCORPIO
PA

Supporter

Range Officer
Members


Moderators


DWF Supporters


Dans Club
Forum Posts: 4015
Member Since:
December 4, 2011
sp_UserOfflineSmall Offline
70
March 14, 2024 - 11:53 am
sp_Permalink sp_Print

The string hack is the only way to go, makes it easy.

Anything worth doing is worth doing well.

My father

If a man designed it, and a man built it, then a man can fix it.

My grandfather

Avatar
capt jack
Member

Dans Club
Forum Posts: 211
Member Since:
August 13, 2022
sp_UserOfflineSmall Offline
71
March 14, 2024 - 12:53 pm
sp_Permalink sp_Print

tried the string hack, just didn’t work for me….i arrange the frame in my left hand with the gun hand up, pulling back on the trigger a little inserted assy into frame
at this point i used a dental pick with 90deg end to get hand in slot then pulled the transfer bar into position…..really hard to explain in words but i am confident i could
repeat expeditiously if had too….. i will never take another large frame apart again.

Avatar
SCORPIO
PA

Supporter

Range Officer
Members


Moderators


DWF Supporters


Dans Club
Forum Posts: 4015
Member Since:
December 4, 2011
sp_UserOfflineSmall Offline
72
March 14, 2024 - 4:46 pm
sp_Permalink sp_Print

I used to be afraid to take a large frame apart, but had to work on a Supermag.  After doing it and using the string trick, I'm not concerned with taking one apart. It's actually pretty easy.
