Hello DWF, I have a 15-2 here. I push down on the cylinder latch, and press the cylinder out. No issues there, however, the cylinder seems to move really stiff when it's open. It can even hold its position.I didn't have this issue until I was done shooting. Any suggestions?

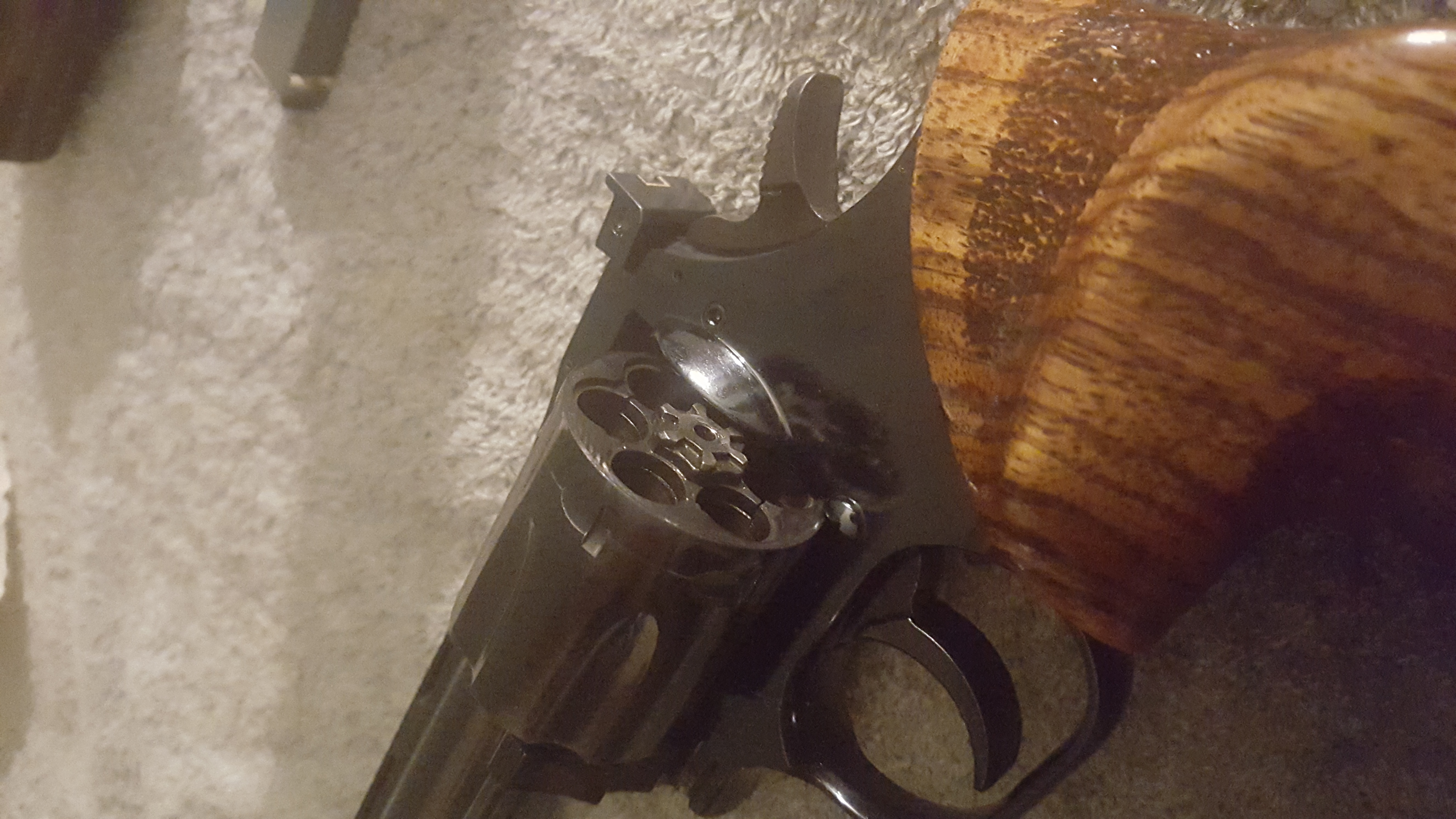

I also posted a photo. The cylinder can hold this position all on its own as its so stiff.
Dans Club
December 5, 2008
Offline
Check the barrel to cylinder clearance. It could be too close.
March 4, 2014
Offline
It does the same thing with no barrel on it at all. it can't be a cylinder gap issue.
Supporter
Moderators
Dans Club
February 22, 2009
Offline
Cleaning first and while apart, check for a bent yoke or crane.
Technically, the glass is always full; half liquid, half air....
February 16, 2016
Offline
Another binding issue can be if the Firing Pin Spring is broken. The Pin will stay out in the striking position and bind up the cylinder, so check that.
Dans Club
March 2, 2008
Offline
Stinger said
Another binding issue can be if the Firing Pin Spring is broken. The Pin will stay out in the striking position and bind up the cylinder, so check that.
The firing pin does not even need to be broken. It's possible that the firing pin/spring just need a good cleaning. The "channel" that the firing pin operates in can get pretty loaded up with crud.
I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.
George Carlin
February 21, 2011
Offline
Do a thorough clean, including a strip down of the mechanism & the hinge point for the crane. You'd be amazed wow much dried gunk can get trapped inside the pivot, binding it up.
Matthew Quigley on handguns:
“I said I never had much use for one. Never said
I didn't know how to use it.”
February 16, 2016
Offline
Steve said
The firing pin does not even need to be broken. It's possible that the firing pin/spring just need a good cleaning. The "channel" that the firing pin operates in can get pretty loaded up with crud.
Excellent point. My helpful hint can be checked without even removing the sideplate. If the Firing Pin is protruding out of the hole, it will bind the cylinder, regardless of the cause (dirty, broken Spring, etc.).
Supporter
Range Officer
Moderators
DWF Supporters
Dans Club
December 4, 2011
Offline
Have you tried a few drops of oil on the pivot while open? Oil it and work it a few times to get it free. Probably just dry accumulation of gunk.
Anything worth doing is worth doing well.
My father
If a man designed it, and a man built it, then a man can fix it.
My grandfather
Dans Club
March 2, 2008
Offline
All excellent advice, a modified Average Joe Tune Up (Average Joe Clean Up?) that does not include any stoning, smoothing, filing, etc., but does include a spring change and a thorough cleaning and lubrication works wonders with most small frame DW revolvers.
