I have waited for these for awhile I am glad I did. These are very nice I ordered them on Thursday or Friday and they came in the mail today Thank you EWK.
David Carey
Dans Club
March 2, 2008
Offline
mister callan said
Is that a break, or a comp?Are there slots on the opposite side?
Could someone help out the clueless among us (and it's possible the the "clueless" includes only one, me), what is the difference between a brake and a comp? What does one do that the other does not?
I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.
George Carlin
October 13, 2009
Offline
Comp-Directs gases upwards to reduce muzzle jump. Operates on the principle of for every action (gases being directed upwards by the comp) there is an equal and opposite reaction (the muzzle being pushed downwards).
Brakes-"Softens" the recoil. Its designed to take the "snap" or "bite" out of the recoil, and make it more of push.
These new brakes are designed to be more of a brake, but also function as a comp by directing the gases upwards.
Supporter
Moderators
January 24, 2009
Online
I received mine a couple days ago, and WOW, what a great looking piece! Can't wait to give it a try.
January 22, 2008
Offline
Now THAT is COOL! Maybe if I can sell my van pretty soon...
…he that hath no sword, let him sell his garment, and buy one. Luke 22:36 Life in a Jar: The Irena Sendler Project http://www.irenasendler.com/
USN-Vet, NRA, GOA, JPFO, SC-GRGR
August 17, 2014
Offline

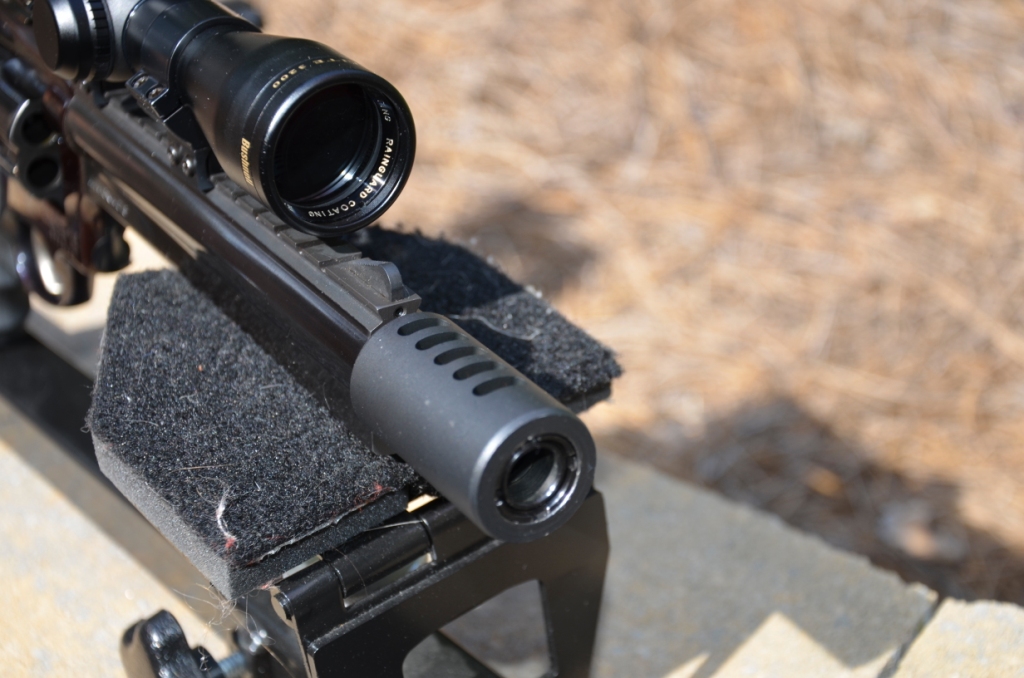

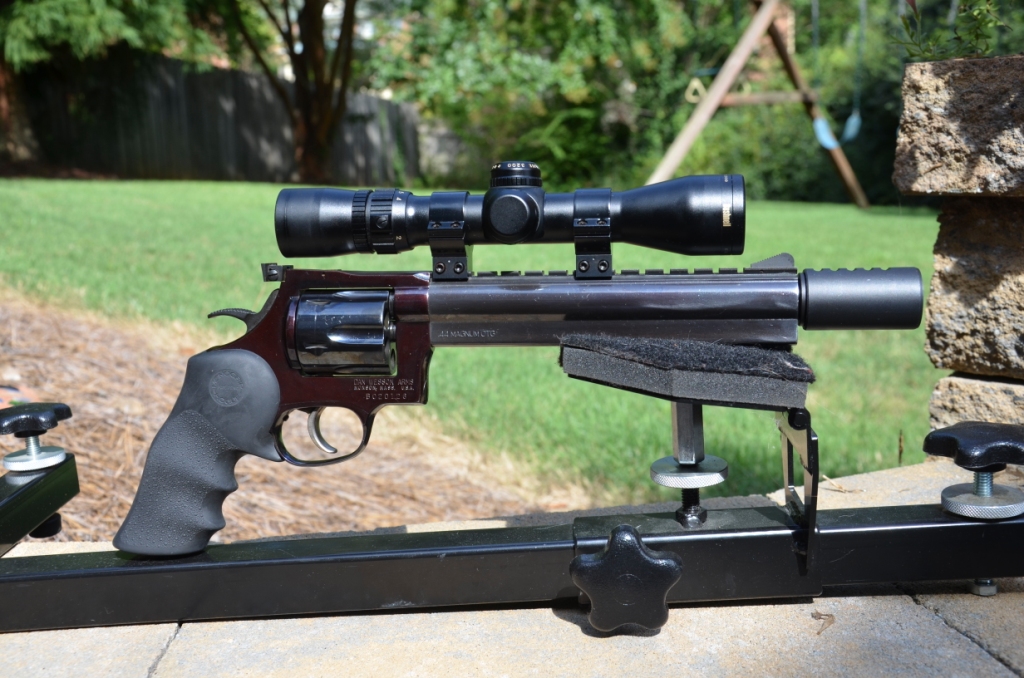

My .44 with railed shroud and muzzle brake. Looks and shoots great
Dans Club
January 17, 2015
Offline
Smully said
My .44 with railed shroud and muzzle brake. Looks and shoots great
Wow - I've been staring at these pics for 15 minutes straight. Gorgeous piece - nicely done.
January 22, 2008
Offline

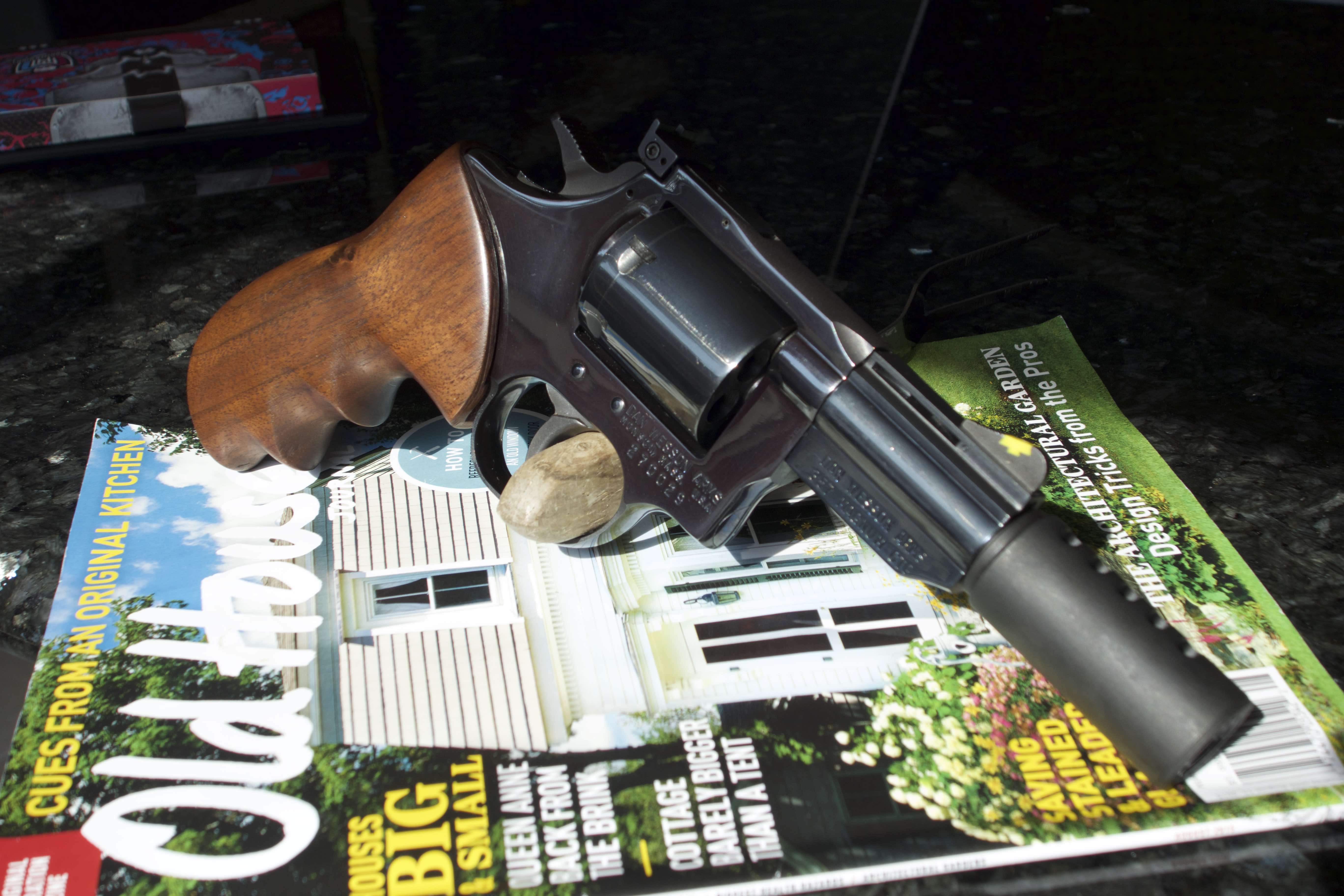

A little more picture porn. Not too good a good picture....
February 20, 2008
Offline
That's some cigarette holder!
If you're going to drink, don't drive. Don't even putt.
January 22, 2008
Offline
Maybe a question for EWK but has anyone ever polished the stainless brake?
Dave
Range Officer
Range Officers
Dans Club
February 28, 2009
Offline
You have inspired me.

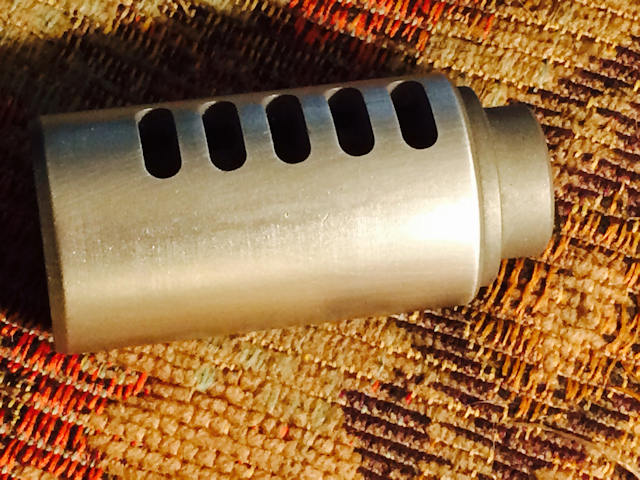

A quick adjustment using sandpaper, a wire (stainless) bore brush and a rescue (green) pad.
It's just a start, but it's getting there. Carppy cell phone pics. It looks better than these pics show.
I tried a brushed finish and it actually looks pretty good. 5 minutes work. Gotta go back and spend another 5 on it to get it really good.
-Mike
October 13, 2009
Offline
Thanks for posting all the pictures, they look great!
Sure, as Mike has shown, it doesn't take too much to polish it....to get it perfect, a couple things-You have to careful not to "washout" the ports. What works best is polishing cloth/emery cloth-keep it tight as you go around it, and you won't have to worry about washout on the ports. Get a barrel tube and carefully clamp it in a vise so you can easily go around the brake, and it will work great to get all the matte finish off and the machining marks. I'd recommend 180-220 grit...it will load up kind of fast, but you don't have to worry about taking too much off, and you don't need to buy several different grits.
August 17, 2014
Offline
Any reason not to use the muzzle brake on a 357 SuperMag?
January 22, 2008
Offline

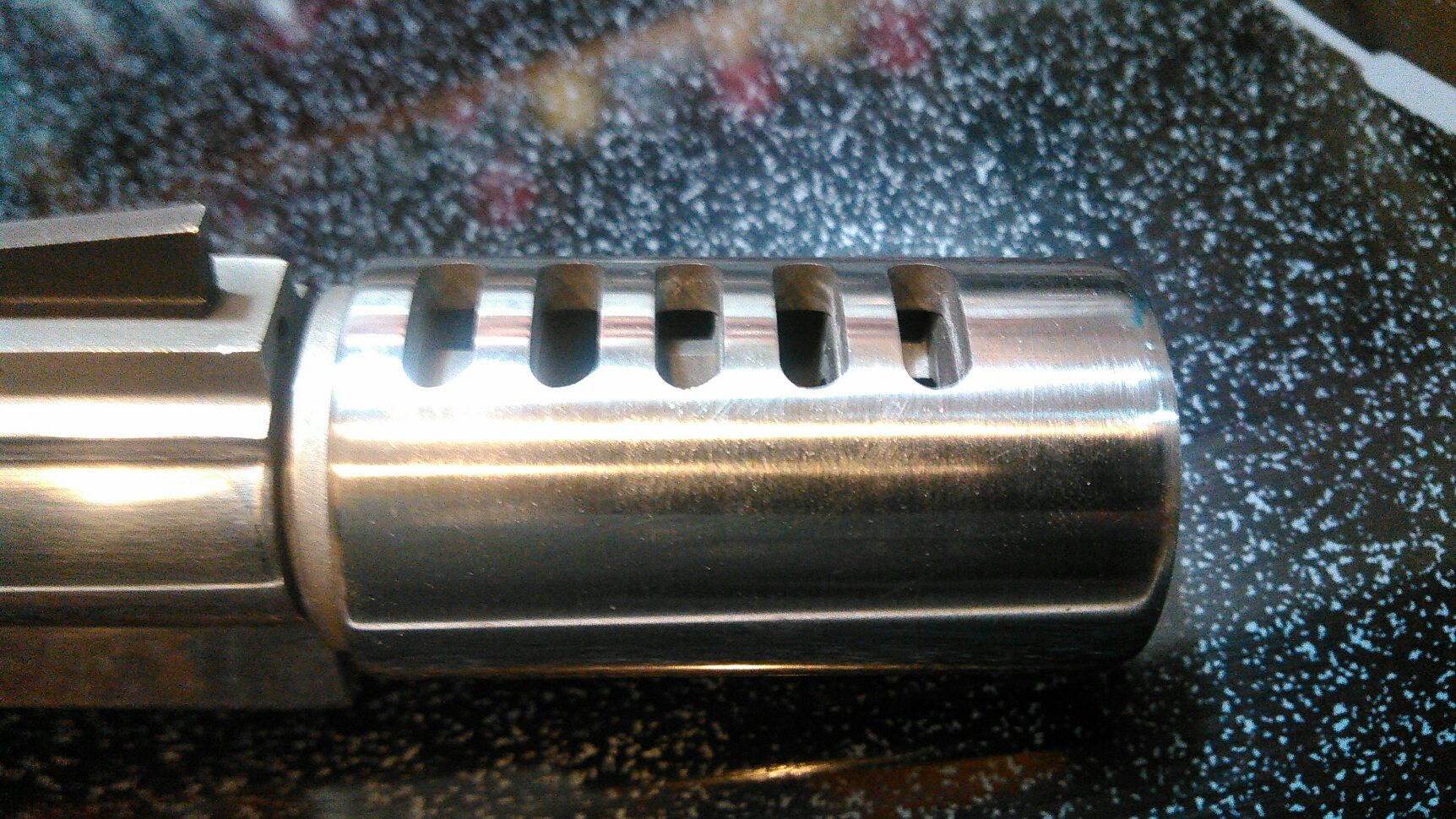

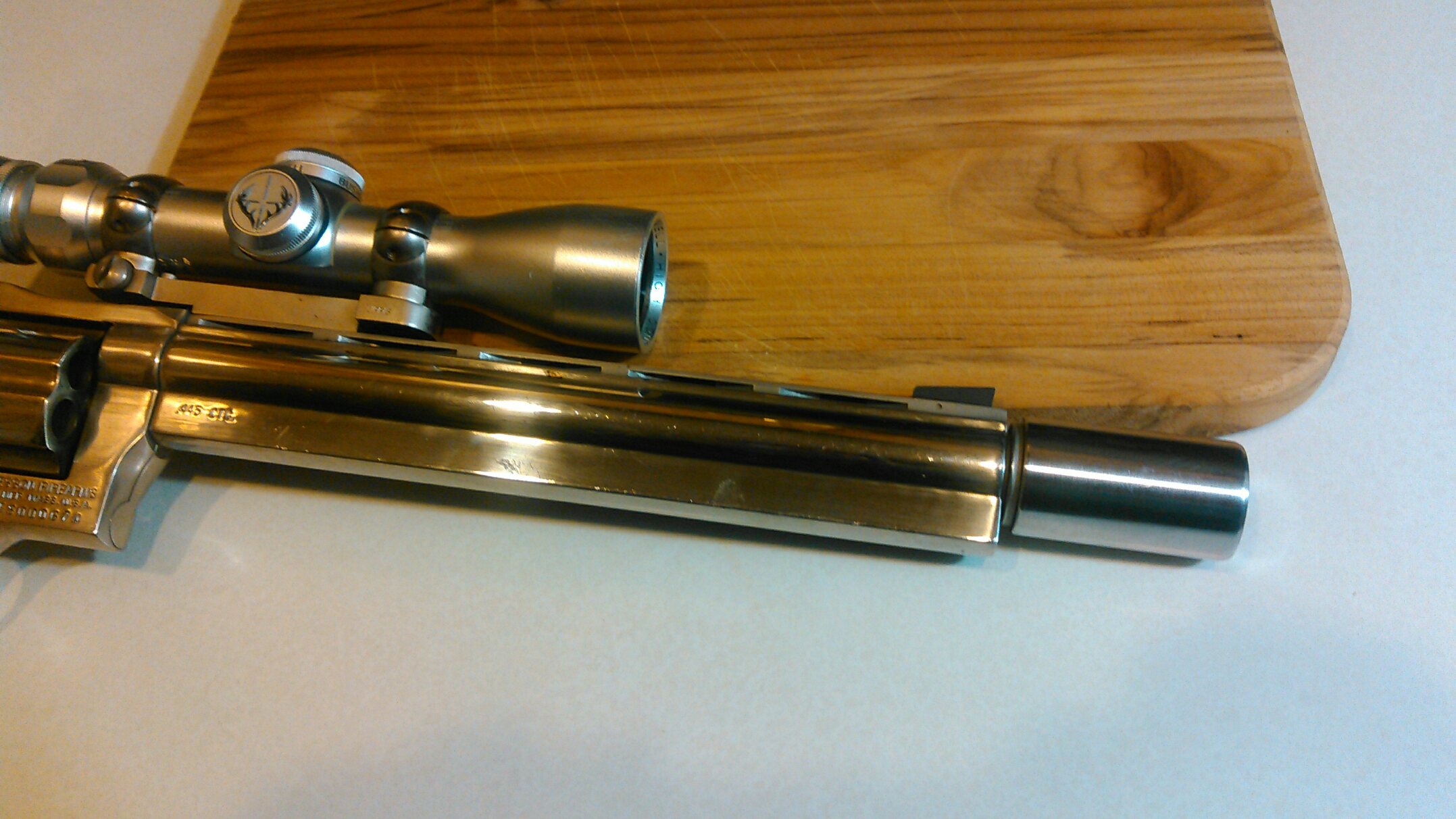

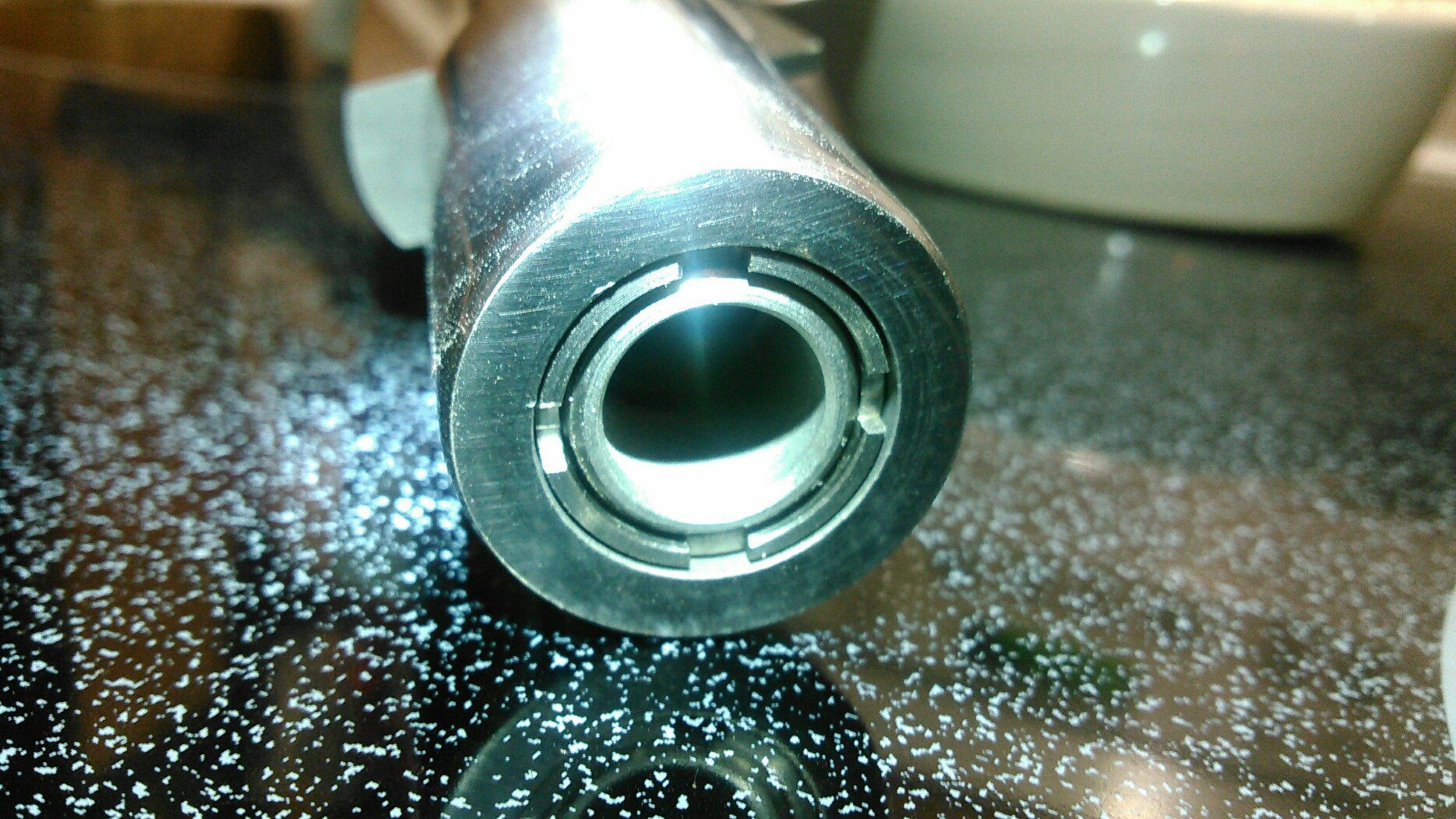

Ok finally got to spend some time in the shop, took about 20 minutes. I ran a bolt through it and put it in the drill press. Set it at 560RPM used wet 220 then wet 500. Turned out good could not find the polishing compound.
Supporter
DWF Supporters
December 16, 2010
Offline
January 22, 2008
Offline
Bring this to the top for minmich, I have not owned an older version but the newest ones are really nice.
DWF Supporters
February 13, 2012
Offline
Thanks. 😀 They look awesome! I'm definitely getting some.
