May 26, 2012
Offline
Finally arrived and what a beauty she is.
May 26, 2012
Offline

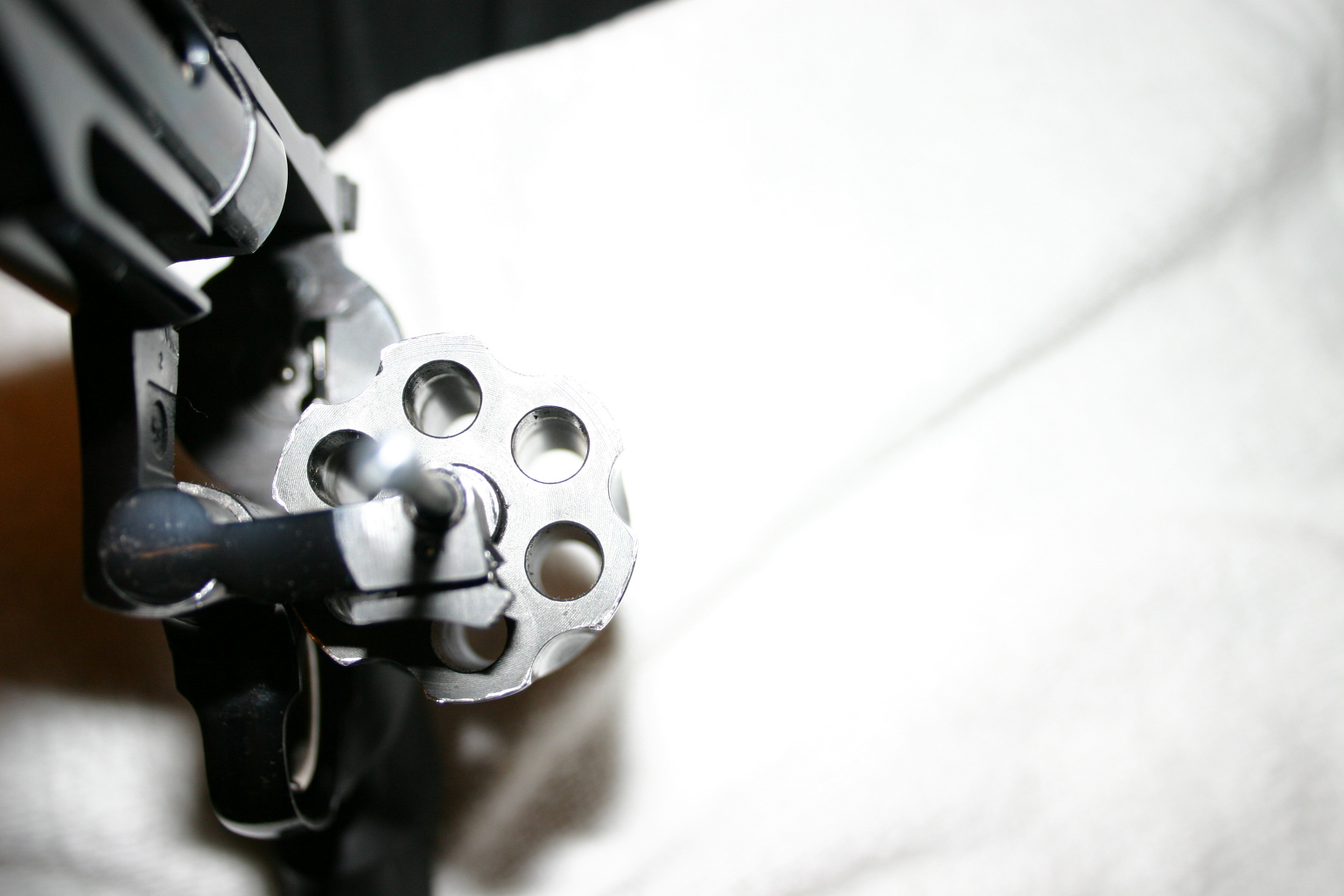

The only marks are on the very front outer edge of the cyl. face and these also wrap around to the outside of the cyl. as well. I can understand the score marks on the cyl. face as that is were it was rubbing on the barrel stub, but what would cause the rub marks to extend to the outside of the cyl. as well?
All in all not a bad find for $375!

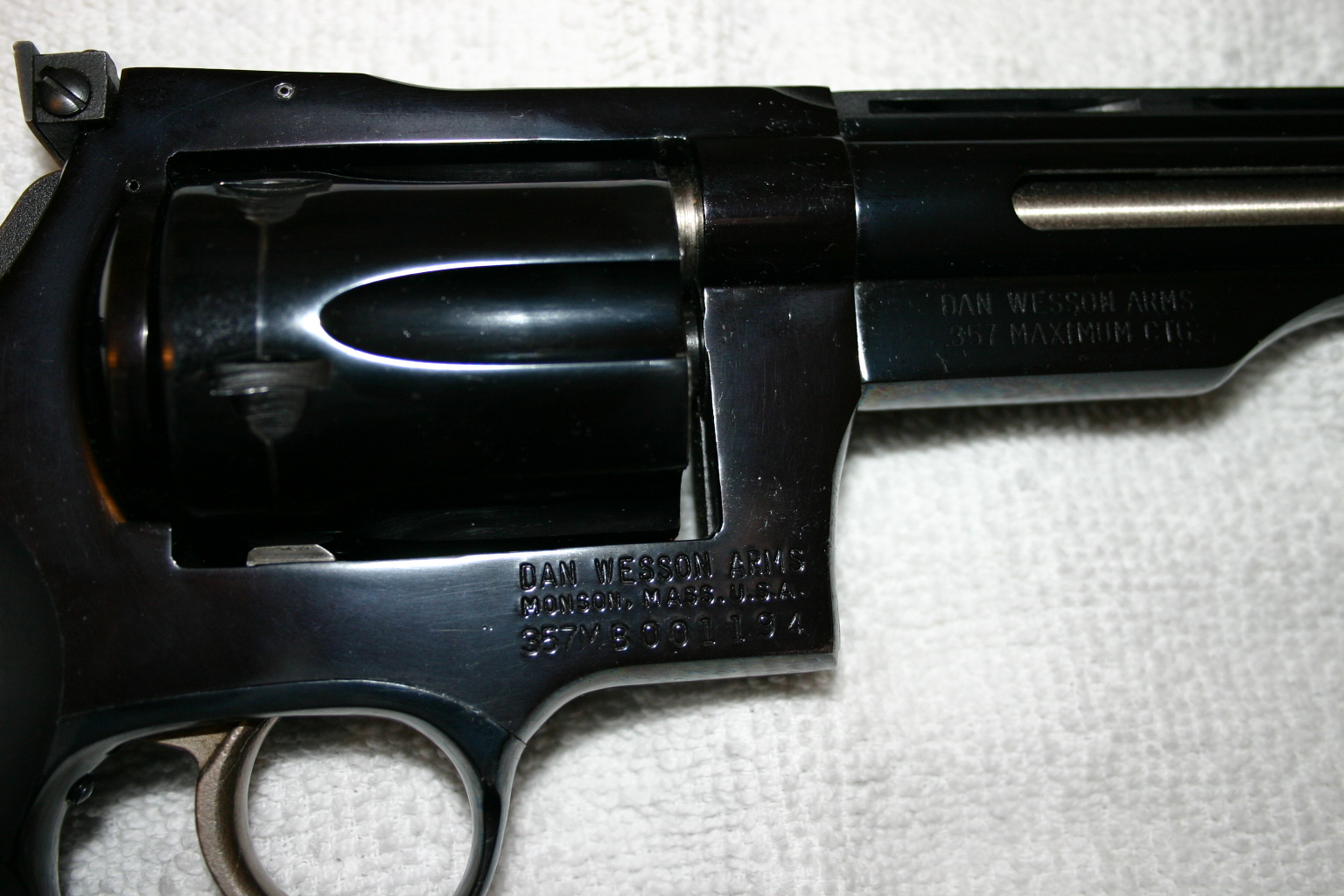

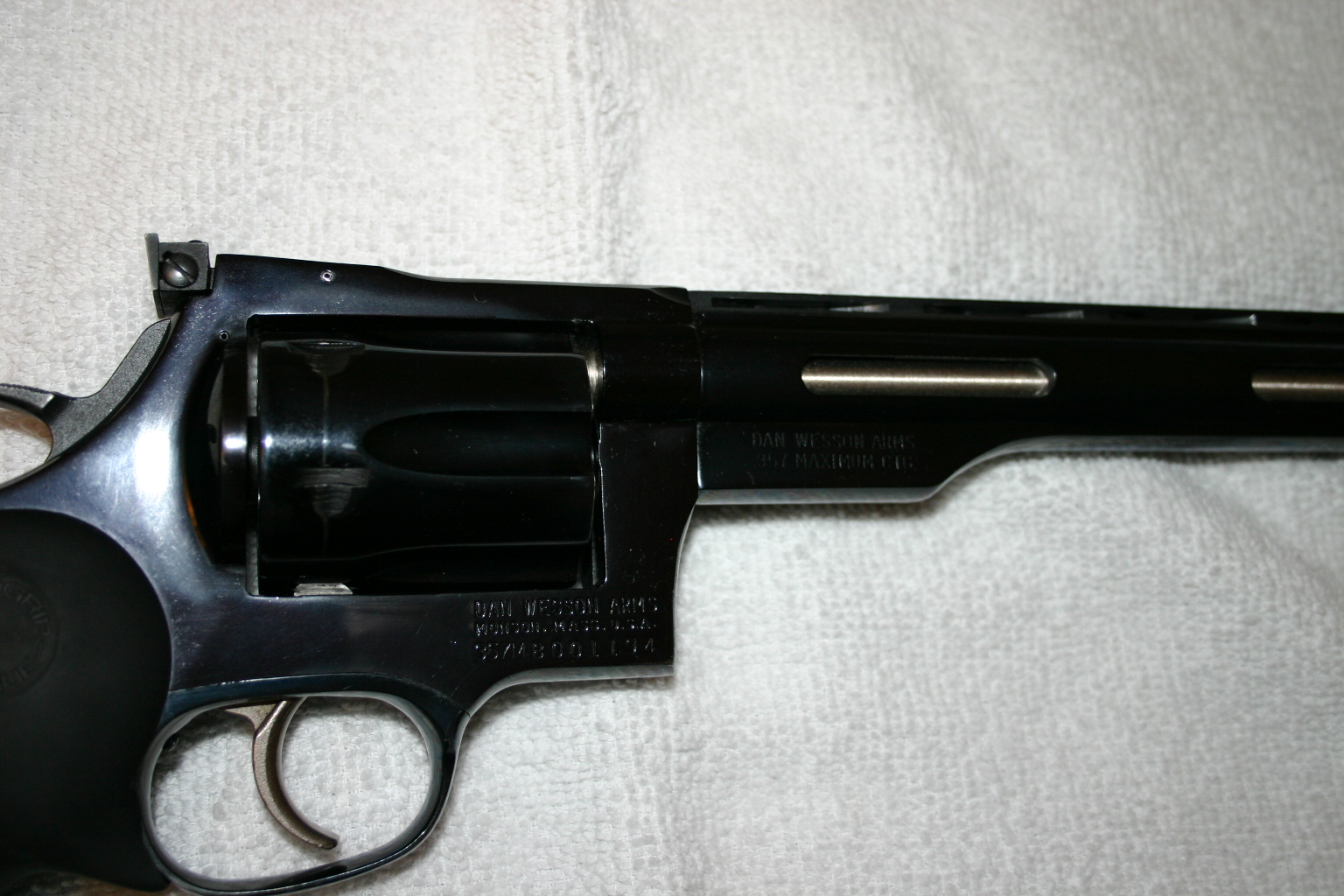

Oh, and it's a monson too!!
August 28, 2009
Offline
Now that was a
! Congrats on the snag!!
Dans Club
March 2, 2008
Offline
freestate101 said:
what would cause the rub marks to extend to the outside of the cyl. as well?
As you rotate the cylinder in the frame, look for some kind of interference where the cylinder is hitting the frame. Is the cylinder marked consistently all the way around or just in certain spots?
I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.
George Carlin
May 26, 2012
Offline
It is marked all the way around, however the markings are more pronounced on one half of the cyl. .
Could the crane or ejector rod be bent?
Supporter
Moderators
January 24, 2009
Offline
It sounds like someone set the barrel gap too tight. Many of the cylinder faces on Monson guns aren't completely true & even, so the idea is to set the B/C gap at the tightest point on the cylinder.
Congrats on your and thanks for the
February 11, 2010
Offline
$375 ?
You really stole that ! Congrats
-Blacktop
May 26, 2012
Offline
Thanks blacktop, I'll have to take some 600 grit emery cloth and see if I can minimize some of the scoring on the face and leading edge of the cyl. and then apply some cold blue to cover it. I don't want to have to reblue the complete cyl. as it would most likely not match the origional. Also, there seems to be a bit more cyl. play when locked up than I'd like to see, both rotational and fore/aft movement.
Dans Club
March 2, 2008
Offline
freestate101 said:
It is marked all the way around, however the markings are more pronounced on one half of the cyl. .
Could the crane or ejector rod be bent?
Watch closely from a side view as you rotate the cylinder in the frame window. You my see it rotate unevenly as it goes around, which might indicate a bent crane. You are kind of looking for the gaps around the cylinder (top, bottom, both ends) to be uneven or changing as it rotates.
And $375 is a REAL nice price
I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.
George Carlin
May 26, 2012
Offline
February 11, 2010
Offline
freestate101 said:
Thanks blacktop, I'll have to take some 600 grit emery cloth and see if I can minimize some of the scoring on the face and leading edge of the cyl. and then apply some cold blue to cover it. I don't want to have to reblue the complete cyl. as it would most likely not match the origional. Also, there seems to be a bit more cyl. play when locked up than I'd like to see, both rotational and fore/aft movement.
First, make sure the front to back movement is not you forcing back against
the cylinder alignment ball in the back frame. This is a common thing
new DW owners mistake as end play. Just grab the cylinder with finger
and thumb and lightly check front to back, no pressure needed, if it's
got play it will slide with little to no effort.
Next, the cylinder will have front to back movement when the cylinder
and crane are in the in the open position, because of this and the fact
that the 357 max has a very tight .002 barrel to cylinder gap it is very
common for the front of the edge of the cylinder to hit the edge of the
barrel as the cylinder is being closed. At full lock up the ejector rod
bushing sets against the frame and helps align the cylinder in the proper
position.
Because of this movement right before lockup it is possible previous
owner was making some quick reloads and agressively closing the cylinder
resulting in the scoring of the cylinder edge you mentioned.
Maybe you got other things going on and none of this relates to what
your stating but worth a check.
-Blacktop
May 26, 2012
Offline
Thanks Blacktop, I'll check these tomorrow after work and post results.
Jim
December 26, 2010
Offline
Congrats! That one is a real beauty.
February 2, 2009
Offline

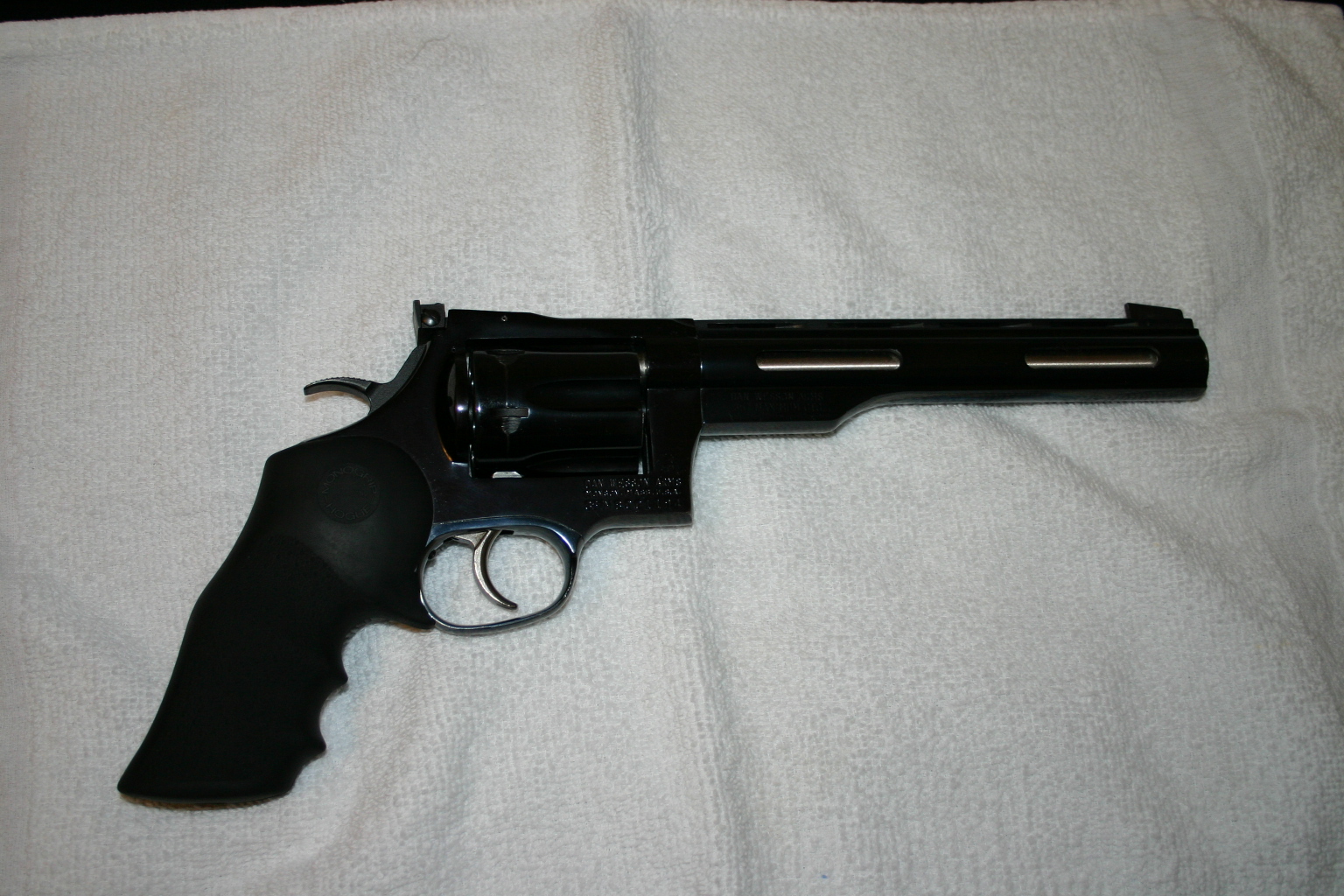

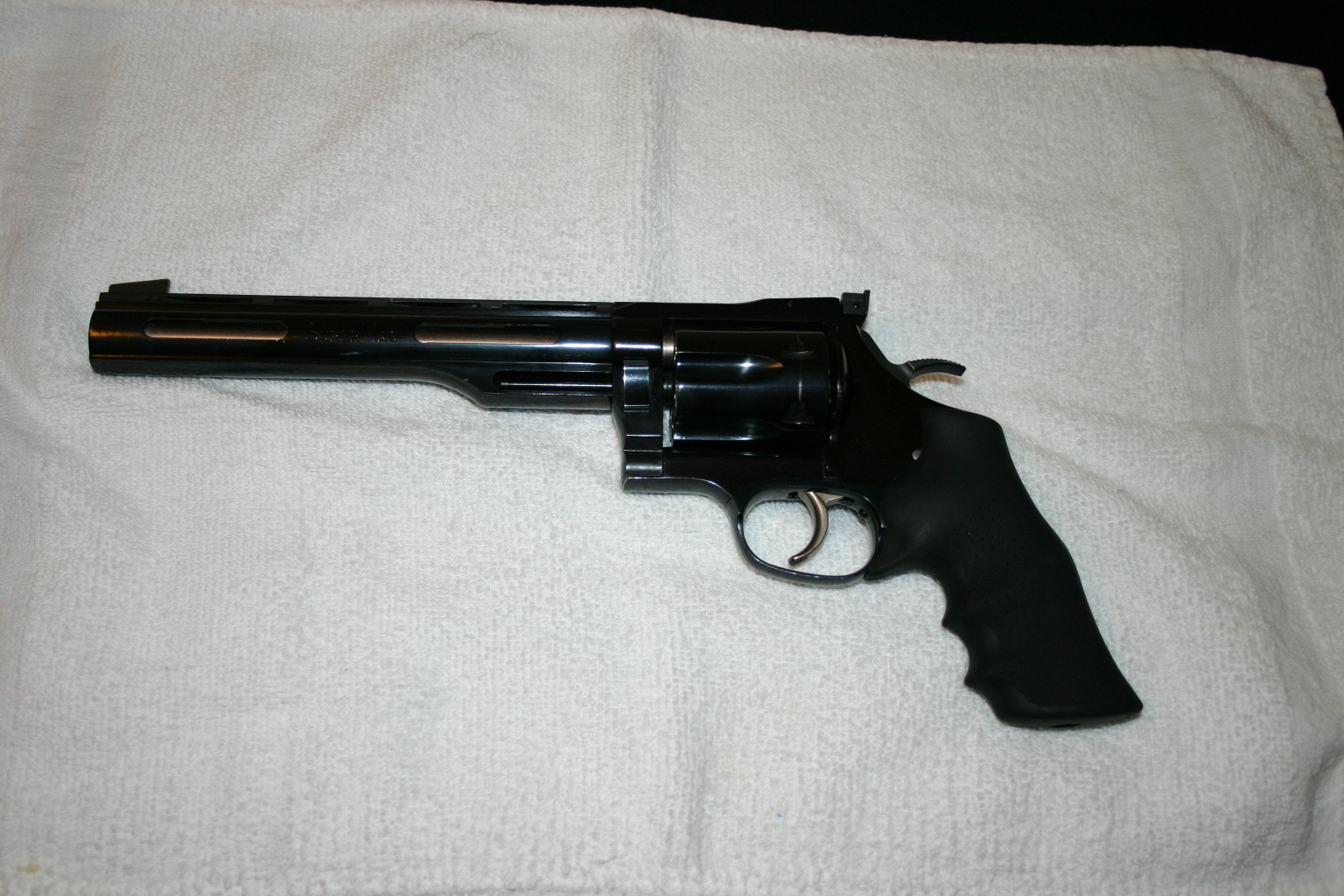

You got a great deal, The slotted light shroud was an optional extra, originally sold to insure the DW made weight in the IHSMA competition. The heavy shroud models were close to max wt., and if optional grips or sights were added, they might go over. You've also got the partridge sight up front, these came in different heights and are slightly lower than the wider standard sight with the plastic insert. They were designed to give POA at 100yd and over, for ram shooting. Congrats on your score. Be sure to use heavy slugs, 170gr or heavier, as the original guns came with 2 barrels after a problem with forcing cones wearing out, turned out to be owners putting in 125gr bullets and shooting them at 2000+fps, which causes premature wear on the cone and flame cutting on the top strap, also why Ruger discontinued their 357max, but many properly cared for Rugers are still around and competing.
May 26, 2012
Offline
Thanks for the kind words robhof. I thought I was getting a good deal on a standard M40, but instead got a great deal on an upgraded one.
I know the Rugers are still around as I had an offer for a trade on the Rem 660 I was offering, but the cash difference the owner wanted was more than I could afford.
It was the top of the line 10" model with globe front sight and aperture rear with custom walnut grips. I didn't look as if it had ever been fired as there were no locking pawl markings on the cyl.
I believe the DW will serve me very nicely, buy man is it heavy!
April 25, 2008
Offline
Great deal on that one! Another ! You have the "true" IHMSA original Model 40...the 8" slotted shroud and the Patridge front sight. No IHMSA shooter would be caught dead with a red ramp front sight.
The Savantist
June 24, 2011
Offline
Awesome gun, awesome find!!! Congrats on your beautiful DW!!
