February 16, 2016
Offline

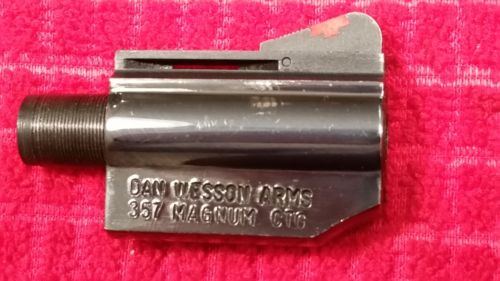

I've noticed that some .357 Monson 2-1/2" barrel shrouds have a curved underlug cut and some have a straight cut. Why have a different cut between Standard and Vented? Presumably, the Heavy goes all the way flush with the muzzle?
Any information greatly appreciated. Here are some current examples on FeeBay;
Supporter
Dans Club
March 25, 2013
Offline
OMG, guess I have some more collecting to do. Haha. Seriously, I have never seen or maybe noticed the curved undercut. Must be Monday morning production.
July 3, 2014
Offline
Straight is for heavy underlug, curved for light underlug. Look at pistol packs, needed some form of differentiation and for an ascetic point, very nice.
February 16, 2016
Offline
Hester 57 said
Straight is for heavy underlug, curved for light underlug. Look at pistol packs, needed some form of differentiation and for an ascetic point, very nice.
That's what I told someone on FeeBay that was selling one with a straight cut and he assured me that Heavy's went out flush with the muzzle crown. I checked Jody's "What model do I have?" thread and his pic showed a Heavy 2-1/2" with it being flush.
My PP from 1979 is a 15-2 Vented and the 2-1/2" shroud has a straight cut. Thus the reason for this thread.
February 16, 2016
Offline
Just thought of something ... could it be that a Vented Heavy shroud might have a straight cut because it is Vented, but a Heavy only is flush. That might be confusing the issue.
Who has a Heavy PP that can check theirs for us ?
DWF Supporters
February 1, 2016
Offline
I believe the Heavy underlug ba's are straight cut and most were vented.
The standard underlug is cut up at end and will match the cut on the longer ba's, just past ejector slot.
It is too short to see the "standard ba look". And could be vented or not.
No PP to check, but I think this is true.
SIZE DOES MATTER
Supporter
DWF Supporters
May 11, 2011
Offline
The pics he has tagged, show a vented barrel assembly. Why one also has a concave cut line I don't know? Maybe I'm not done with collecting yet also.
February 16, 2016
Offline
willy said
The pics he has tagged, show a vented barrel assembly. Why one also has a concave cut line I don't know? Maybe I'm not done with collecting yet also.
Excellent catch !
After enlarging the pics of the curved cut, it is indeed a Vented shroud. Mystery continues ...
DWF Supporters
Dans Club
Moderators
November 17, 2008
Offline
OK I will try.
Heavy under-lug= square at the muzzle regardless if it is vented or not.
Half lug or standard curves up just after the ejector slot regardless if it is vented or not.
On a 2 1/2 shroud the curve ends at the 2 1/2 point.
The exception to this is some of the fixed barrels have a similar bevel at the muzzle.
Some where on here are pictures of all that, but I seem to have issues finding them right now.
Hope this answers the question.
LB
Wisdom is merely the realization of how little one knows, therefore I am wise.
Supporter
Moderators
January 24, 2009
Offline
lbruce said
Some where on here are pictures of all that, but I seem to have issues finding them right now.
Yeah, there used to be a link showing all (or most) of the various barrel configurations, but it's gone now. I don't know if it got eaten during a site update or what.
Supporter
DWF Supporters
May 11, 2011
Offline
Supporter
Dans Club
March 25, 2013
Offline
I think a former Smith and Wesson employee must have started working for Dan Wesson and it slipped past quality control. You could put it on ebay and say Rare, Rare, Rare and get twice the going rate. Seriously, standard and vent have the slanted cut regardless of the rib. Heavy and vent heavy the lug is flush with the muzzle. Fixed barrel lugs were like the heavy but with a slant at the end regardless of length. I believe they also sold some of the fixed barrel types separately during the Palmer years. I have a stainless 3 inch and a stainless 6 inch with the full lug and slanted cut. I also have a blue Norwalk 3 inch heavy Lug. I consider the 3 inch priceless. Haha. Consider the 3" Python. I'm so funny. One day I may build a 3,5,7 pack. Still need a 5 and 7.
Supporter
Moderators
January 24, 2009
Offline
willy said
Let me try this
Good examples!
Those are both standard shrouds...the top is non-vented & the bottom vented. Heavy shrouds will have the same options on the top rib, but will come straight out & squared off at the bottom...just like the longer barrel versions do.
Supporter
DWF Supporters
May 11, 2011
Offline
No your missing this, if you blow the top photo up it's vented also. But that's not what he was talking about. It's the concave of the diagonal cut on the top picture.
February 16, 2016
Offline
willy said
Let me try this
Thanks for putting my example images up Willy, FeeBay wouldn't let my iPad copy them.
DWF Supporters
Dans Club
Moderators
November 17, 2008
Offline
There is a difference in the radius of the concave, however I always "assumed" that was just the guy who was running the finish sander that day.
LB
Wisdom is merely the realization of how little one knows, therefore I am wise.
December 19, 2014
Offline
lbruce said
I always "assumed" that was just the guy who was running the finish sander that day.LB
I hope he didn't work on any barrels that day.
"Yeah, that's a 362 and a half magnum CTG. Just a bit bigger than the 357's we normally have."
February 20, 2008
Offline
Ole Dog said
I think a former Smith and Wesson employee must have started working for Dan Wesson and it slipped past quality control. You could put it on ebay and say Rare, Rare, Rare and get twice the going rate. Seriously, standard and vent have the slanted cut regardless of the rib. Heavy and vent heavy the lug is flush with the muzzle. Fixed barrel lugs were like the heavy but with a slant at the end regardless of length. I believe they also sold some of the fixed barrel types separately during the Palmer years. I have a stainless 3 inch and a stainless 6 inch with the full lug and slanted cut. I also have a blue Norwalk 3 inch heavy Lug. I consider the 3 inch priceless. Haha. Consider the 3" Python. I'm so funny. One day I may build a 3,5,7 pack. Still need a 5 and 7.
Don't forget the 9, 11 & 13
If you're going to drink, don't drive. Don't even putt.
February 16, 2016
Offline
Dans Club
March 2, 2008
Offline
Stinger said
Well, we can't allow that to continue, can we?
I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.
George Carlin
