sp_Feed sp_TopicIcon
Quick Question
Avatar
jlhog1
Member
Members
Forum Posts: 26
Member Since:
January 19, 2023
sp_UserOfflineSmall Offline
1
March 12, 2023 - 7:12 pm
sp_Permalink sp_Print

Will a 14-2 barrel work on a 15-2 revolver? I cant seem to find an answer as to what the difference is.

Thanks,,,

Avatar
605Dart
SW PA
Member

DWF Supporters
Forum Posts: 1074
Member Since:
July 12, 2020
sp_UserOnlineSmall Online
2
March 12, 2023 - 8:35 pm
sp_Permalink sp_Print

Pretty sure the barrels and shrouds are the same. The difference is fixed sights/adjustable sights.

Avatar
jlhog1
Member
Members
Forum Posts: 26
Member Since:
January 19, 2023
sp_UserOfflineSmall Offline
3
March 12, 2023 - 8:55 pm
sp_Permalink sp_Print

I have been searching more and that's pretty much what I am finding. Thanks

Avatar
Dan Fan
Member
Members


Dans Club
Forum Posts: 1235
Member Since:
October 17, 2008
sp_UserOfflineSmall Offline
4
March 12, 2023 - 11:33 pm
sp_Permalink sp_Print

Fixed rear sight and lower front sight blade on model 14-2 changes your point of aim with a 15-2 front sight

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 4086
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
5
March 13, 2023 - 4:27 am
sp_Permalink sp_Print

Barrels are the same. However, a model 14 and 15 Barrel of a porkchop is 1/4" shorter and will not work.

Avatar
Stinger
Member
Members
Forum Posts: 3465
Member Since:
February 16, 2016
sp_UserOfflineSmall Offline
6
March 13, 2023 - 9:33 am
sp_Permalink sp_Print

jlhog1 said
Will a 14-2 barrel work on a 15-2 revolver?

Yes, a 14-2 barrel tube will fit on a 15-2 frame. The shrouds are what causes the POA issues.

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 4086
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
7
March 13, 2023 - 1:24 pm
sp_Permalink sp_Print

To make matters more confusing, 14 and 15 porkchop shrouds have higher front sights than the unofficial 14-1 and 15-1. There are also POA issues. 14 rear sight is on top of the frame and 14-1 is a cut in the frame like the 14-2. 15 is the big original rear sight and the 15-1 rear sight is the High Sta dard sight. Similar to a S&W rear sight.

Avatar
jlhog1
Member
Members
Forum Posts: 26
Member Since:
January 19, 2023
sp_UserOfflineSmall Offline
8
March 13, 2023 - 4:33 pm
sp_Permalink sp_Print sp_EditHistory

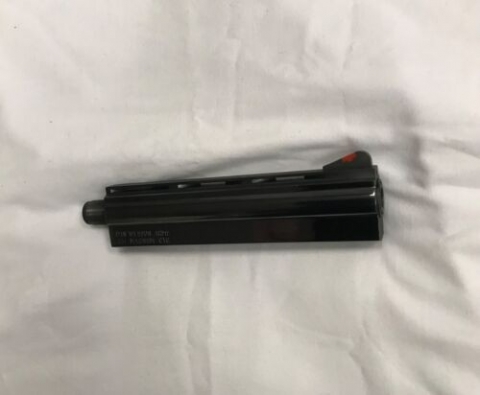

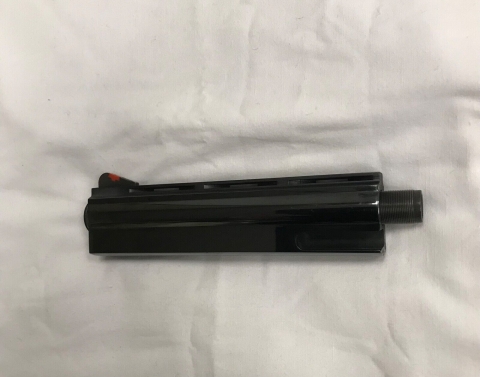

This is the barrel in question. It is not the pork chop version. Are front sight blades available that can correct the POA if needed?

s-l500.jpgImage Enlarger

s-l1600-2.jpgImage Enlarger

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 4086
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
9
March 13, 2023 - 6:48 pm
sp_Permalink sp_Print

If you have a 14-2 frame and want to use that shroud you can get a front sight from EWK. Dan Wesson did make lower profile front sights but I think they were for the longer (10" to 15") and they are very hard to find.

 You need to use correct terminology if you require information. That is a shroud, not a barrel. The barrel is the tube that screws into the frame. They are the same for 14-2s and 15-2s. The two together with the barrel nut are called a Barrel Assembly, or BA for short.

Avatar
jlhog1
Member
Members
Forum Posts: 26
Member Since:
January 19, 2023
sp_UserOfflineSmall Offline
10
March 13, 2023 - 7:05 pm
sp_Permalink sp_Print

I will try to get my terminology correct in the future. If you read my first post I asked this "Will a 14-2 barrel (should be BA") work my bad ("fit") on a 15-2 revolver?" So no I am not trying to put this on a 14-2 frame as you state above. I have a 15-2 "frame". DW is so confusing unless you are an expert with many years experience. This is my first DW revolver or frame and BA.

Avatar
Stinger
Member
Members
Forum Posts: 3465
Member Since:
February 16, 2016
sp_UserOfflineSmall Offline
11
March 13, 2023 - 7:19 pm
sp_Permalink sp_Print

jlhog1 said
Are front sight blades available that can correct the POA if need

Yes, I believe EWK sells 15-2 front sights that allow proper POA when mounted on a 14-2 frame.
